Construction Machinery
Description:
It is the main machinery used for constructing the highway, road, airport and port of the city. This road-constructing equipment is composed of the chassis, asphalt tanks, asphalt pump, spray system, heat conduction oil-heating system, hydraulic system, combustion system, control system, pneumatic systems, operating platform, etc. Asphalt distributor can be divided into LMT5160GLQ asphalt distributor (standard), LMT5160GLQ-1 asphalt distributor (semi-intelligentized), and ZQZ5161GLQ asphalt distributor (intelligentized).
Application:

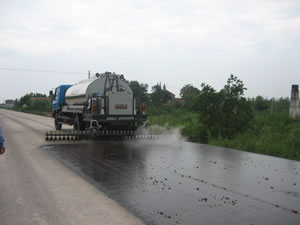

During the construction and the maintenance of asphalt pavement, the asphalt distributor can be used to transport and sprinkle the liquid asphalt (including hot asphalt, emulsified asphalt and residual). In addition, it can also supply asphalt to the loosen soil. This vehicle can be applied to the construction of stabilized asphalt pavement or basement.
When we constructing the highway, the intelligent asphalt distributor can be used to sprinkle the asphalt on prime coat oil, waterproof layer, and tack coat. It can also sprinkle the high viscosity modified asphalt, heavy traffic paving PETroleum asphalt, modified emulsified asphalt, etc. In addition, this asphalt distributor can also be applied to the construction of county and township road and pavement.
| LMT5160GLQ-1 Asphalt Distributor (Standard) | ||||
| MAIN TECHNICAL PARAMETER | ||||
| Model | LMT5160GLQ-1 | Engine Model | WD615.62 | |
| Chassis Model | EQ1168G7DJ2 | Displacement (L) | 9.726 | |
| Truck Type | Flat head 4×2 rear drive | Max. Power (kw/r/min) | 196/2200 | |
| Dimension | 9660×2480×3350 | Max. Torque (N·m/r/min) | 1100/1400-1600 | |
| (L×W×H) mm | ||||
| Cab Passenger | 3 | Cleaning Diesel Tank Capacity (L) | 60 | |
| Vehicle kerb Mass (kg) | 11870 | Fuel Tank Capacity (L) | 145 | |
| Rated Load Mass (kg) | 4000 | Hydraulic Oil Tank Capacity (L) | 90 | |
| Max. Total Mass (kg) | 16000 | Gearbox Model | 8JS10013 | |
| Distribution of Axle Load (KG) | Front Axle (no load) | 5020 | ||
| Front Axle (full load) | 6500 | |||
| Rear Axle (no load) | 6850 | Asphalt Pump Model | HD101 | |
| Rear Axle (full load) | 9500 | Asphalt Pump Displacement (ml/r) | 1600 | |
| Wheelbase (mm) | 5000 | Asphalt Pump Rotating Speed (r/m) | 600 | |
| Tread (front/rear) mm | 2022/1830 | Power Take-off Model | 211/70 PQ1-3 | |
| Min. Ground Clearance (mm) | 248 | Burner Model | G20-474T1 | |
| Suspension (front/rear) mm | 1500/2980 | Hydraulic Pump Model | CBQ-F563AFP | |
| Approach/Departure Angle (°) | 34/12 | Hydraulic Motor Model | GM05-90-8H | |
| Ramp Angle (°) | 23 | Rated Pressure (Mpa) | 16 | |
| Max. Speed (km/h) | 90 | Heat Conducting Oil Pump Model | BRY40-25-160 | |
| Working Speed(km/h) | 2.5~10.5 | Heat Conducting Oil Model | Great Wall 32# | |
| Max. Grade ability (%) | ＞23 | Asphalt Tank Capacity (L) | 10000 | |
| Tyre Model | 11.00-20×16PR | Nozzle | 39 | |
| Tyre Pressure front/rear (kPa) | 630/630 | Spraybar Variable (m) | 2~6 | |
| Main Drive Ratio | 4.22 | Spraybar Value (kg/m2) | 0.5~3.0 | |
| Max. Braking Distance (m) | <10 | Emission Standard | GB17691-2001(Ⅱ) | |
| Min. Turning Circle Dia. (m) | <23.8 | GB3847-1999 | ||
| Oil Consumption (L/100km) | <26 | |||
| Parking Gradient (%) | ＞20 | |||
| Annex 2: Quality guarantee limit easily damaged(LMT5160GLQ-FREE) | ||||
| No. | Name | Type | Unit | Quantity |
| Chassis parts | ||||
| 1 | generator | JFWZB29 | piece | 1 |
| 2 | Fan belt | 1550 | piece | 4 |
| 3 | Engine oil case | 1008A | piece | 2 |
| 4 | Diesel oil case | 0710B4 | piece | 2 |
| 5 | Air case | 1109QF16-020 | piece | 2 |
| 6 | Brake cylinder cup | 3519C-045 | piece | 4 |
| 7 | Starting motor | QD252 | piece | 1 |
| 8 | Engine oil sensor | 819QA-010 | piece | 2 |
| 9 | Ignition switch | 37QA-04010 | piece | 2 |
| 10 | Clutch disc | 255MF6 | plate | 2 |
| 11 | Clutch Master Cylinder | 1604QA-010 | piece | 2 |
| 12 | Clutch Cylinder | 1605QK-010 | piece | 2 |
| 13 | Air pressure indicator | C-1Y60-ET | piece | 1 |
| 14 | Engine repair bag | 4102QB-0011 | piece | 2 |
| Asphalt system(specialty)parts | ||||
| 1 | Driving shaft | BJ212-235 | piece | 1 |
| 2 | High pressure asphalt hose | 5m | radix | 2 |
| 3 | Copper nozzle | piece | 4 | |
| 4 | Nozzle component element | set | 2 | |
| 5 | Electromagnetic valve | 4V210-08-24V | piece | 5 |
| 6 | Small cylinder | MAL32X75 | piece | 2 |
| 7 | Nozzle special ball valve | set | 2 | |
| 8 | Self-induced pipe | set | 1 | |
| 9 | V-Belt | A1295 A1041 | piece | 2 |
| 10 | Sealing ring | 65×5.5 | piece | 4 |
| 11 | High-temperature brake valve 1'' | X43W | piece | 1 |
| 12 | High-temperature brake valve 2'' | Q41PPL16 | piece | 1 |
| 13 | Hydraulic oil element(big) | RFA-100×30 | piece | 1 |
| 14 | Hydraulic oil element(small) | QUQ2 | piece | 1 |
