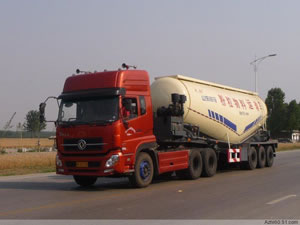

Bulk Powder Truck
Bulk Powder Truck
Description:
The truck is widely used for loading, unloading, transportation, storage and operation of bulk cement. It is equipped with air operated loading, discharge and separation units for bulk cement. This truck features high efficiency, no pollution, small loss of cement and high quality, etc.
Features:
1. Heavy-duty chassis has large loading capacity and strong cross performance; large volume containers can meet the requirement of mass cementing.
2. This bulk powder truck/bulk cement truck is powered by truck engine; self-supplying air source; it can work continuously in severe conditions.
3. Both vertical and horizontal tanks for loading and discharge of bulk cement are available.
4. Air-cement separator (optional) at discharge end separates the air from cement, which can improve the working environment of site.
Dongfeng Double Bridge Bulk Cement Truck
| Vehicle Description Of Dongfeng Double Bridge Bulk Cement Truck |
| Product |
Dongfeng double bridge bulk cement truck |
| Chassis model |
EQ1208GJ6 |
| Payload(kg) |
8000 |
| Engine model |
EQB210-20 |
| Displacement/Power(ml/kw) |
5880/155 |
| Actual cubage(m3) |
1.2 |
| Chassis Description Of Dongfeng Double Bridge Bulk Cement Truck |
| Overall dimension(mm) |
11500×2480×3650 |
| Wheelbase(mm) |
5350+1300 |
| Transmission |
6 gear mechanical transmission, double pole remote control (Choose to fix SAGGW 8 stalls gear box) |
| Steering gear |
Power steeriing |
| Braking system |
Manual valve spring braking |
| Clutch |
Diaphragm spring clutch, Dia φ395MM |
| Front axle |
End fist type, I-beam structure, 5T |
| Rear axle |
Ramming welding bridge shell, through mid-rear bridge 10T×2 the reduction ratio 6.166 |
| Frame description |
Stamping riveting structure, the outer width of frame assembly 861MM |
| Max section area |
280×80×(7＋5)mm |
| Cab |
Non-longheaded cab, whole metal-enclosed，twisted bar type, turntable. three-seat with sleeper, adjustable driver seat |
| Air-condition |
Choose to fix non-fluorine air-condition |
| Engine Description of Dongfeng Double Bridge Bulk Cement Truck |
| Engine model |
EQB210-20 |
| Type |
Water-cooling, 6-in-line supercharged inner-cooling diesel engine |
| Max power(kw) |
155 |
| Displacement(ml) |
5880 |
| Max torque(N. m) |
700 |
| Cylinder diameter/Stroke(mm) |
102 /120 |
| Fuel type |
Diesel |
| Manufacturer |
Dongfeng Commins Diesel Engine Co., Ltd |
