Description:
The mucking loader, with the other names "haggloader', is a underground construction machinery typically used in the excavating of tunnel mining, mine engineering and hydraulic engineering. This machine is especially suitable for the mining engineer with multifunction of hydraulic transmission, excavating and collecting, transport, loading and cleaning. This machine can be flexible even in the narrow and small scale conditions. So it is also used to collect and convey the gravelly soil in underground constructions.
Our muck loader can be classified as: coal mine haggloader, rock loading and excavation, tunnel excavation, underground engineering, to name a few. It is also can be divided into crawler muck loader, tracked excavating loader, and wheel mucking loader and so on.

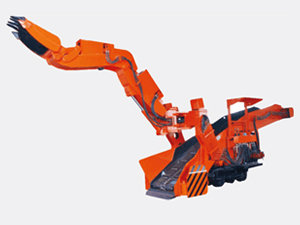

Typical: T-180 Track Wheel Mucking Loader
As a kind of underground mucking machine or equipment, T-180 track wheel mucking loader (haggloader) adopts electrical hydraulic mechanism driving system, hydraulic motor and mechanism motor drive for travelling and rock muck scraper transportation. There is special hydraulic cylinder that can drive the arm, boom, bucket and cylinder of working mechanism. With reasonable layout of hydraulic system and special electrical and hydraulic protection system, the machine can be work under a safe environment.
Main Overall Dimensions:
| LWLX-180 Haggloader (Mucking Loader) | ||
| Crawler contacting ground length | 2827mm | |
| Crawler inner width | 1350mm(variable) | |
| Crawler plate width | 500/600mm | |
| Ground clearance of Mucking Loader | 380mm(variable) | |
| Conveyor inner width | 780mm | |
| Dimensions during transport | length | 13088mm |
| Width | 2350mm | |
| Height | 2500mm | |
| Dimensions during operating | length | 14500mm |
| Width | 2350mm | |
| Height | 3500mm | |
Working Range:
| LWLX-180 Haggloader | ||
| Standard arm | Short arm(selective) | |
| Digging width of the Mucking Loader | 7030mm 5800mm | |
| Digging distance(from dozer blade) | 3000mm 2650mm | |
| Digging height | 4635mm 3100mm | |
| Digging depth below ground level | 990mm 700mm | |
| Dumping height | 2693mm(Variable) | |
| Minimum dumpling height | 1970mm(Variable) | |
| Dumping distance | 5123mm(Variable) | |
| Max.boom angle of the Mucking Loader | ±55° | |
| Adaptive tunnel dimension (Width×Height) | ≥3.8×3.8m | |
Functional Parameters:
| Haggloader Loading ability | 180m³/h |
| General power | 79kw |
| Weight | 21500kg |
| Traveling speed | 0.54±5%m/s |
| Scraper chain | Double chains double motors/Single chain double motors |
| Adaptive tunnel slope | ≤32° |
| Min. turing radius | ≥8m |
| Ground pressure | ≤0.1Mpa |
| Haggloader Steering | Hydraulic |
| Speed of scraper chain | 44m/min |
| Volume of hydraulic tank | 400L |
| Maximum working pressure | 32Mpa |
| Hydraulic pump | Plunger pump×2+gear pump×2 |
| Walking hydraulic motor | Radial plunger motor×2 |
| Conveyor hydraulic motor | Radial plunger motor×2 |
