  • Dump Truck 4×2 HN3150P19D5M3Truck Name:CAMC DUMP TRUCK HN3150P19D5M3
    Company Name:CAMC GROUP LIMITED MITG GROUP LIMITED
    Oevrall dimensions (mm) 7880×2452,2495×3150 Cargo dimensions(mm),
    5200,5400×2300×1200...
  • Dump Truck 8×4 HN3311Z27C4M3Truck Name:CAMC DUMP TRUCK HN3240P31D7M3
    Company Name:MITG
    Trademark:CLW
    Oevrall dimensions (mm) 9880×2495×3360,3630 Cargo dimensions(mm) 7000×2300×1200

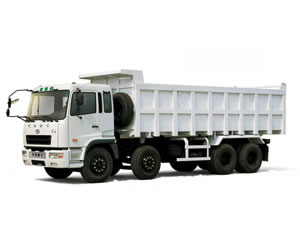

Dump Truck

Dump Truck

Description:
A dump truck is always referred to an automatic machine that can self unload stocked good on it, by using hydraulic pressure or mechanical lifting system. The whole machine consists of underpan, hydraulic lifting device, cargo compartment, and strength making device, to name a few.
In engineering process, the dumping truck often combining used with excavator, loader, and transfer equipment, to loading, transferring, un-loading or dumping those products like earth work soil, dina, bulk cargos.
The dump truck can automatically tip over to certain degree, greatly saving time and labor force. This allows it to be a construction machine that is in common used.
Here in our company, all the dump truck adopt the superior accessories, those trucks features great loading capacity, safe, low coast while value reserve, simple operation, and speed up loading.

Typical:
Dump Truck (HN3310P38C3M)
Cabin: Mitsubishi style (optional: Euro style), flat roof; With air conditioner, MP3 or CD player and sleeper, etc.
Engine: Cummins, HINO, Mitsubishi, Weichai, etc.
Engine power Range: 280HP~420HP
Engine Emission Standard: Euro 2 or 3
Fuel Type: Diesel oil
Transmission: Fuller 9/12/16 shifts; ZF 16 shifts
Wheelbase (mm): 1850+3370+1350
Overall Dimension(mm)
Length: 10550
Width: 2495
Height: 3360
DECK Dimension(mm)
Length: 7000; 7200; 7500; 7800; 8200
Width: 2300
Height: 1100; 1500
Tire specification(optional): 11.00-20; 11.00R20; 12.00-20; 12.00R20; 12.00-24; 12.00R24; 12R22.5; 315/80R22.5., etc.
Number of Axles: 4; Number of Tire: 12+1
Color(optional): White; Blue; Red; Yellow, etc.
Steering Model: Steering wheel
Driving Model: Left-hand or right-hand
GVW (kg): 31000
Kerb Mass (kg): 15050
Rated loading Capacity (kg): 20000~40000
Approaching Angle/Departure Angle (degree): 24/23
Rated Crew (including Driver): 3
Front Suspension/Rear Suspension (mm): 1370/1850
Max. Speed (km/h): 90
