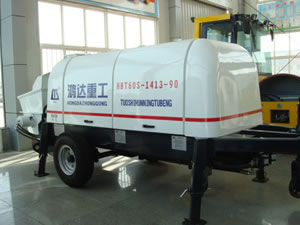

HBT60S1413-90

Pump Truck

Description:
This truck mounted concrete pump is a traditional construction machine. Our pump trucks are modernized and advanced, with computer simulation techniques and systematically analyzing functions. On the other hand, our pump truck is equipped with free fluid technique and great hydraulic system, as well as slewing rings from GERMANY ROTHE ERDE or imported from ITALY.

Moreover, the accurate finite element analysis and dynamics simulation analysis are also equipped to this machine. There are big-diameter transport cylinder which offer large pumping flow and good aggregate suction ability that can ensure you a high performance in construction works.
To be stated, the hydraulic system is the key element when you choose a concrete pump. Our superior hydraulic system features free flowing closed hydraulic driving system, intelligent control system, lessened reversal impact, closed system forbidding emulsifying, outstanding buffer technology, which ensures you competitive products.

Main technical parameters of Trailer-concrete pump HBT60S1413-90

Item Unit or model Parameters
Type   Horizontal single acting biserial hydraulic piston type
Distribution valve   "S"  pipe valve
Delivery pressure of concrete in theory High pressure small displacement MPa 13
Low pressure large displacement 7.5
Delivery capacity of concrete in theory High pressure small displacement m3/h 40
Low pressure large displacement 60

Max. delivery distance in theory
150mmPipe m horizontal 1200,vertical  250
125mmPipe m horizontal 1000,vertical  230
Max. aggregate dimension 150mmPipe mm 50
125mmPipe mm 40

Delivery cylinder diameter x Max. stroke
mm φ195×1400
Hopper volume/ feeding height m3/mm 0.7/1320
Main motor Y2-280M-4 Rated power  90KW
Main oil pump 190or 224 A11V0190or K3V112+112 Max. flow rate 272.76L/min
Hydraulic oil tank volume L 560
Hydraulic oil Great wall brand AW46# antiwear hydraulic oil
Tread mm 1840
Power supply voltage/frequency V/Hz 380/50
Outline dimension: L x W x H Mm 5950×2045×2050
Max. towing speed Km/h 2≤15,3≤8
2 level  highway ≤15,
3 level highway ≤8
Total mass kg 5900
