Forklifts

Forklifts

Description:
Forklifts
Top 18 global forklifts suppliers
Diesel forklifts, battery forklifts and LPG forklifts
Complete line of applications and accessories
Low Fuel Consumption and Eco-Friendly
Easy maintenance & Outstanding After-sales service
Top brand quality, reliable and save 20% plus

Feature:
1. Ranks 18th of global top 20 forklift suppliers.
2. Internal Combustion Forklift, Electric Forklift.
3. Eco-Friendly, Low Fuel Consumption Powerful Engine.
4. Complete line of applications and accessories.
5. Easy maintenance & Outstanding After-sales service.
6. Top brand quality, reliable and save 20% plus.
Model:

LongKing
LG16B FB20 LG25 LG30BG LG16BE LG35BG LG20D LG20DT
LG25DT LG30D LG30DT LG35DT LG40DT LG50DT LG60DT LG70DT
LG80DT LG100DT LG160DT LG260EC8 LG420FC4 LG20GLT LG30GLT

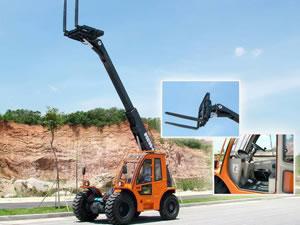

1. Typical: SCZ25-2
As a new loading/unloading machine, SCZ25-2 model telescopic forklift truck is equipped with fork and side-shifting device (or with fork and bucket), it is suitable for hoisting and piling of goods packed in boxes, and also for such aloft work as installation and maintenance of street lighting fitting and laying-out of underground pipelines (pipeline of tap water, gas and so on) in the construction of municipal works, and it may be used widely in such sites as factories, stations, logistics terminals, goods yards, post office, forest farm, enterprises of building materials, and warehouses, and therefore it is a loading/unloading machine with wide adaptability and high efficiency.

Parameter:

Rated Load 2500kg
Lifting Load (Max. extend length) 1050kg
Max. Lifting Height of Basic Arm 4300mm
Max. Lifting Height of Full Extend Arm 6000mm
Max. Traveling Speed 28km/h
Min. Ground Clearance 310mm
Min. Turning Diameter (Center of Outer Wheel) 10000mm
Grade Ability 20%
Deadweight 7100kg
Overall Dimension (L×W×H) 5560mm×2270mm×2560mm
Engine (YITUO DONGFANGHONG) Type LR4108G
Rated Power 60kw
Rated Speed 2400r/min
Tire Front Wheel 16/70-20
Rear Wheel 8.25-15

LongKing Forklift LG16B

Model Number LG16B
Power Type DC Electric
Load capacity 1600kg
Overall L×H×W 3030×2135×1080
Battery Capacity 48/460V/Ah

Main technical parameter of Electric forklift LG16B
Load center (mm): 500
STD Ma× lifting height (mm): 3000
Free lift height (mm): 125
Fork size (mm): 920×100×35
Mast tilt angle (deg): 6/12
Front overhang (mm): 425
Min.turning radius (mm): 1950
Speed (load/unload)
Max. Traveling speed (km/h): 11/12
Max.lifting speed (mm/s): 260/420
Max gradient (load/unload) (%): 12/15
Dead weight (kg): 3200
Tread (front/rear) (mm): 890/920
Axle distance (mm): 1370
Front: 6.5-10-10PR
Rear: 5.00-8-10PR
Controller: CURTIS (ZAPI)

Overall Data of forklift LG40
Engine type: XINCHAI A498BPG
Load center (mm): 500
STD Max lifting height (mm): 3000
Free lift height (mm): 170
Fork size (mm): 1070x150x50
Mast tilt angle (deg): 6/12
Front overhang (mm): 493
Rear overhang (mm): 530
Min. turning radius (mm): 2710
Speed (load/unload)
Max. Traveling speed (km/h): 19/20
Max. lifting speed (mm/s): 380/410
Max gradient (load/unload) (%): 20
Dead weight (kg): 5000
Tread (front/rear) (mm): 1040/970
Axle distance (mm): 1900
Min. ground clearance
Mast (mm):  148
Frame (mm): 160
