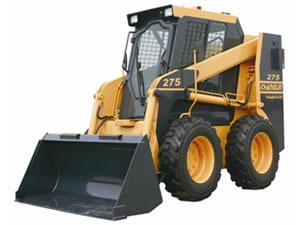

Skid Steer Loader

Skid Steer Loader

Features:
1. Our skid steer loader has the solid overall structure: hydraulic oil tank, fuel tank, the sprocket gearbox and frame. It's sturdy and compact and works with high reliability.
2. Safe and comfortable operating environment: ROPS and FOPS cabin.

Main Parts
1. The Xinchai engine, oil pump and motor, are energy-saving and low-noise.
2. The hydrostatic transmission running gear adheres to the ground with quick drive and reliable braking.
3. The skid steer loader is compact with high power, 360o steering.
4. Pilot control, the hand lever can perform move, load and unload operation.
5. The rotating bucket oil-way is auto compensated which ensures a quick and smooth operation.
6. The skid steer loader is equipped with closed cab equipped with air-conditioner, rearview mirror. The driver has a wide vision.
7. Thorough autodiagnosis system monitors hydraulic pressure and electrical equipment.
8. Various working heads have met different needs.
9. Unique working heads are easy to change. One operator can exchange various working heads quickly by hands.

Model:
TS80 TS100 JC35 JC45 JC50D JC60 JC65
JC70 JC75 JC80A JC100 JC50D JC50K JC60F

Configuration Features of Skid Steer Loader
The international first-class brand of components: skid steer loader special hydraulic pump and motor are original imported. Bearings are from international first-class brand, control valves of high quality and hydraulic servo handle can ensure sensitivity and accuracy of operating.
The core power of world class quality: optional imported engine, ultra-low emission, minimum to Tier2 or Tier3, ultra-low noise, can meet the strict requirement of green environmental protection.

Maintenance:
Our skid steer loader maintenance is easier: rear cover can completely open, cabin can make a large-angle tipping, which makes daily maintenance easier.
Driving system with long service life and easy maintenance: Using high strength chain pre-tensioning to drive skid steer loaders, hydraulic motor drives through the both chains well designed to the wheels, making it easier to adjust and maintain, which can ensure the chain transmission efficiency and longer service life.
Applicable environment:
Unique structural features: small volume, light weight, small turning radius, multi-usage, which makes skid steer loader widely used in various situations.
1. Road municipal maintenance system: city road miller, cleaning, push to sweep the snow, smashing, etc.
2. Clean the scattered material, unstuffing and handling of the ports.
3. Handling and cleaning the gushed arenaceous material of shipyard, cleaning the dropped slag of power plant and steel mill.
4. Loading and unloading, cleaning bulk material of different narrow space of mines, buildings, factories etc.
Main Specification of Skid Steer Loader

Type SL650 SL750 SL850 SL950
Engine Rated power (Kw) 36.8kw (50hp) 45kw (61.2hp) 45kw (61.2hp) 47kw (64hp)
Rotating Speed (rpm) 2650 2500 2500 2500
Noise In cab (dB) ≤92 ≤92 ≤92 ≤92
Out of cab (dB) ≤106 ≤106 ≤106 ≤106
Hydraulic System Cycle Time (s)
Raise 3.5-4.5 3.5-4.5 5.56 3.5-4.5
Dump 2-2.5 2-2.5 2.16 2-2.5
Lower 3-3.5 3-3.5 5.03 3-3.5
Performance Operating Load (kg) 650 750 850 950
Bucket Capacity (m3) 0.47 0.55 0.4 0.55
Max lifting force (kg) 1060 1610 1134 1885
Speed (Km/h) 0-11.2 0-11.2 0-14.3 11.5/23
Operating weight with standard bucket (kg) 2900 3520 2840 3500
Tyre 10-16.5 12-16.5 10-16.5 12-16.5
Dimensions
Max. height (mm) 3970 3900 3660 3900
Dump height (mm) 2100 2200 2200 2200
Height to top of cab (mm) 2090 2300 1460 2300
Overall length with bucket (mm) 3525 3500 3365 3500
Dump distance (mm) 750 640 300 640
Overall length without bucket (mm) 2700 2800 2430 2800
Bucket width (mm) 1720 2020 1720 2020
Overall length to outside of tyre (mm) 1760 1980 1678 1980
Ground clearance (mm) 210 190 120 190
Clearance circuit front (mm) 2090 2200 2090 2200
Dump angle at max height (°) 45° 45° 35° 45°
Max attachment rollback when bucket on ground (°) 31° 31° 29° 31°
Angle of departure (°) 23° 20° 16° 20°
