Motor Grader

Motor Grader

Description:
The motor grader, also known as road grader, is a primarily machine used in the construction and maintenance site like dirt roads, gravel roads, as well as snowy and loosen earth. The road grader machine is used to flatten the surface, so that the asphalt can be placed on. It is a preparing base construction course. Road grader is also used to set native soil foundation pads prior to the construction of large buildings. Our motor graders are designed under world-class standards with advanced electronics and hydraulics from 165HP to 315HP for multi-applications. They are equipped with original Cummins engine QSM-11, original ZF torque converter, gearbox and driving axle, or CAT licensed engine, good quality axle, Germany ZF licensed sing-handle electro-hydraulic. It is the ideal product to meet the harsh road construction and maintenance at mining area.

ChangLin Motor Grader:
713H 717 718 718-5 719
720 722-5 722-6 PY165C-5 PY165H
PY190C-5 PY190H PY220H
XCMG Motor Grader:
GH215 GR100 GR135 GR165
GR180 GR200 GR215A GR300

Features:
1.The efficient and environment-friendly Shangchai engine is equipped with hard, reliable and secure parts.
2.Electro-hydraulic control power gearshift gear-box is adopted and it's controlled by single lever.
3.The rear axle is equipped with self-locked and off differential mechanism. Inner the balance box is the circular chain drive of reinforced double row roller chain. 17.5-125-12PR wide tyre is a standard one.
4.The motor grader adopts full-hydraulic system, high steering angle, and minimum turning radius prior to same kind of domestic products.
5.The gear oil pump supplies oil to two pilot valves by diverter valve. In rotary oil-way, the oil interflows. The process promotes stable working speed and low energy consumption.
6.The hydraulic locks are fastened to the lifting, sidesway, frame articulating and front wheel sidesway circuits.
7.The structure is U section with A shape. It's simple and with high mechanical strength. The shovel blade can title 90o and the gear ring can rotate 360o.
8.The brake system is hydraulic shoe brake. Brake booster is key part, made from MICO.
9.Unique upturning shield is easy to maintain.

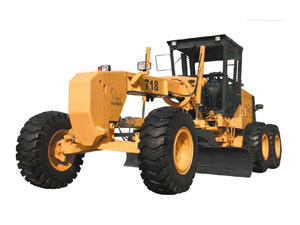

718 Motor Grader Specifications
1. Our motor grader is equipped with DongFeng Cummins engine
2. Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient
3. Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
4. Ideal axel load allocation provides excellent stability while cutting hard surface
5. Serviceable, efficient hydraulic system enables every part to be fully used
6. Box-typed frame and advanced T/M enable it to complete heavy duty work
7. A wide road grader working range is accomplished through flexible blade suspension system and articulated frame

Motor grader Overall Dimension
1 Length: 8690mm
2 Widths: 2600mm
3 Height (to the top of the cab): 3370mm
4 Wheel base: 6100mm
5 Tread: 2120(mm)

Main Technical Specification
1 Operating weight: 15000kg
2 Motor Grader Blade length: 3966mm
3 Blade height: 645mm
4 Blade width: 20mm
5 Max lifting height: 450mm
6 Max grading depth: 510mm
7 Min. turning radius: 7300mm
8 Motor Grader Pivot angle frame: +260
9 Max turning angle (front wheel):  +490
10 Oscillating angle of front axle:  320
11 Front axle center ground clearance: 430mm
12 Cut angle: 29-77°
13 Traveling speed(Km/h),6 forward and 3 reverse
(1) Ⅰ gear forward 6.5
(2) Ⅱ gear forward 11.4
(3) Ⅲ gear forward 14.6
(4) Ⅳ gear forward 24.8
(5) Ⅴ gear forward 30
(6) Ⅵ gear forward 49.2
(7) Ⅰ gear reverse 6.5
(8) Ⅱ gear reverse 14.6
(9) Ⅲ gear reverse 30

Motor Grader Diesel engine
1 Model: 6BTA5.9-C180
2 Type direct injection, turbocharged, water cooling
3 Rated output: 128 kW
4 Inter-bore of cylinder/Stroke: 102 /120 (mm)
5 Total exhaust of cylinder: 5.9 (L)
6 Model of starting motor: KB-24V
7 Power of start motor: 1.68(KW)
8 Voltage of starting motor: 24(V)
9 Rated speed: 2200(r/min)
10 Max.torque:  >750(N.M) at 1300r/min
11 Starting type Electric
12 Min. specific fuel consumption: <220(g/Kw.h)
13 Engine specific oil consumption: 0.95-1.77(g/Kw.h)
14 Net weight: 590(kg)

Transmission System of the Motor Grader
1. Torque Converter for the road grader
A Model: 6WG180 (ZF technology)
B Type: 3-elements.single stage
C Torque ratio: 2.35
D Cooling type Pressure oil circulating
2. Transmission case
A Model 6WG180 (ZF technology)
B Type power shift, single-shift lever, neutral-shift lock device
C Gear shift position 6 forward and 3 reverse gears
3. Axle and Tire of the road grader
A Type of main reducer spiral bevel gear, single stage
B Gear ratio of main reducer: 3.583
C Type of final reducer Single stage chain-drive
D Gear of ratio of final reducer: 3.75
E Gear ratio: 13.436
F Tandem drive: Double row roller-chains
G Tandem oscillation: 13°forward and reverse
H Size of tire: 17.5-25-12PR L-3

Working Device Hydraulic System
1 Model of oil pump (include steering pump): CBGj2045/1025
2 System pressure: 175(kgf/cm2)
3 Model of distribution valve: HUSCO5000-D
4 Hydraulic lock: KAYABA technologies
5 Model of oil motor: EATON, JS-130

Steering System of the road grader
1 Type: four Tire deflections
2 Model of steering gea: BZZ1-E160B/ FKA-163022
3 System pressures: 15MPa

Brake System of road grader
1 Type of traveling brake: Hydraulic assisted and inner-expanding brake
2 System pressure: 120(kgf/cm2)
3 Type of parking brake: Mechanical and inner-expanding brake
Motor Grader Oil Capacity
1 Fuel (diesel): 350L
2 Engine lubricating oil: 14L
3 Oil for converter and gear box: 45L
4 Oil for hydraulic system: 70L
5 Oil for driving rear axles: 18L
6 Tandem box: 84L
7 Circle reverse housing: 3.8L
