1. OUTPUT ABILITY
Mix 600 kg asphalt each batch
If average moisture content of sand is 5%, and mixing period is 40s, output is 48T/H
If average moisture content of sand is 5%, and mixing period is 60s, output is 36T/H.
Conditions concerned with output ability are as follows
1) Moisture content of sand only refers the surface moisture content of material, and moisture content inside will low the output ability of drying drum.
2) Ambient humidity is 20℃.
3) Density of the material is 1600 kg/m³.
4) Output includes the weight filler and bitumen.
5) The proportion of aggregate must be correctly, and the specifications must fit to standard.
6) The density of filler is 1120 kg/ m³.

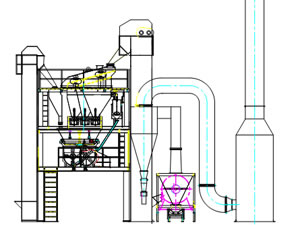

2. MAIN EQUIPMENTS (BASIC EQUIPMENTS) SPECIFICATIONS AND QUANTITIES
This system is composed of 3 hoppers, 3 electromagnetic vibrating feeders and Belt conveyor
Belt width: 500 mm
Hopper capacity: 3 m³×3
Single hopper width: 2600 mm
Single hopper height: 2500 mm
Electromagnetic vibrating feeder 3
Speed reducer: motor: 1
2) Drying system and fuel feed system
Drive mode: driven by chain
Speed reducer: motor: 11 kW 1
Drying drum size: φ1300×5300 mm
Burner: 300 kg/h made in china 1
Draught fan: electrical motor 18.5 kW
Diesel tank: 4 m³ 1
Type: horizonal
Oil pump electric motor: 1.1 kW
3).Dust filter system
Grade 1 duster is cyclone type 1
Grade 2 duster is wet type 1
Working air quantity: 13800 m³/h
Filler dust emission: ≤300 mg/m³
Draught fan: electrical motor: 22 kW 1
Water pump: electric motor: 3 kW 2
4). Filler supply system
electrical motor: 2.2 kW 1
5). Hot material supply system
Electrical motor: 5.5 kW 1
6). Screen system
2 floors and 3 standards vibrators set upper, seal mounted between screen body and hot material hopper.
Specification of the mesh: 5×5 16×16 25×25
Electrical motor: 4 kW 1
7). Aggregate silo system
Total 3 silos, including waster aperture and discharge material level
8). Aggregate measuring system
Sensors 3
Weighing unit: 1
9). filler measuring system
Butterfly valve 1
10). Bitumen measuring system
Sensors 3
Weighing unit: 1
11). Mix system
Type: Horizontal two-axis, push-pull gate
Decelerator: electric motor: 22 kW 1
12). Pneumatic system
Air cylinders 9
Electromagnetic valves 8
Triplicate parts 1
Air compressor 1
Electric motor: 5.5 kW
13). Frame system
14). Electric controlling system
Function:
1) Automatic control of formulation
2) Formulation modified at anytime
3) Temperature and weight display
4) Convenient to set or change operation parameter
5) Current display of main motors
6) Manual or automatic operation modes switch
Electric cabinets
Operation cabinet 1
15).Control room: Size: 2.4m × 2.4m × 4.5m (without air contioner) 1
16). Bitumen supply system
Capacity: 12.5m³ 2
Rock wool for warmt, hot oil heating
Bitumen discharge pool capacity: 2 m3 1
Bitumen pump: electric motor: 5.5 kW 1
Bitumen adding pump: 7.5 kW 1
Bitumen heating temperature 150-160℃ (normal temperature for plant running)
Max temperature 200℃
17). Hot oil system
Heating ability: 250000 kcal/h
System power: 17 kW
