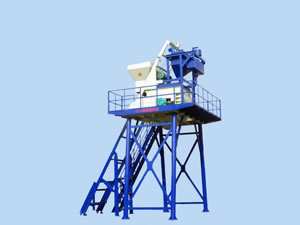

HZS35 Simple concrete mixing plant (Discharge height 3.8 m) Configuration Table
1. Standard Structure:| Serial number | Part name | Structure item | Producing area | Qty | Remark |
| 1 | PLD1200 Proportioning system | ||||
| Storage hopper 2×3m3(Feeding width 2.7m) | Shandong Hongda | 1 | |||
| 3 kW Proportioning belt conveyor | Shandong Hongda | 2 | |||
| Weighing hopper | Shandong Hongda | 1 | |||
| Weighing sensor | China | 1 | |||
| 3 kW Discharging belt conveyor | Shandong Hongda | 1 | |||
| 2 | Aggregate hoisting system | ||||
| Hoisting hopper | Shandong Hongda | 1 | |||
| Track advancing | Shandong Hongda | 1 | |||
| Upper limit switch | Schneider | 1 | |||
| Lower limit switch Lower limit switch | Schneider | 1 | |||
| Steel cable | Shandong Hongda | 1 | |||
| Reducer | Shandong Hongda | 1 | |||
| 7.5 KW Tapered brake motor | China | 1 | |||
| 3 | Main machine frame | ||||
| Chassis | Shandong Hongda | 1 | |||
| Support leg | Shandong Hongda | 1 | |||
| Walking board | Shandong Hongda | 1 | |||
| Ladder | Shandong Hongda | 1 | |||
| 4 | Mixer | ||||
| JS750 Mixing tank | Shandong Hongda | 1 | |||
| 30 KW Transmission reducing motor | China | 1 | |||
| Mixing device | Shandong Hongda | 1 | |||
| Discharging mechanism | Shandong Hongda | 1 | |||
| Oil supply system | Shandong Hongda | 1 | |||
| 5 | Cement weighing system | ||||
| Cement weighing hopper bracket | Shandong Hongda | 1 | |||
| Cement weighing hopper | Shandong Hongda | 1 | |||
| Vibrator | China | 1 | |||
| 500 kg Weighing sensor | China | 3 | |||
| Φ250 mm Pneumatic butterfly valve | China | 1 | |||
| 6 | Water weighing system | ||||
| Water weighing hopper bracket | Shandong Hongda | 1 | |||
| Water weighing hopper | Shandong Hongda | 1 | |||
| 500 kg Weighing sensor | China | 3 | |||
| Φ100 mm Pneumatic butterfly valve | China | 1 | |||
| 3 kW Water pump | Shanghai | 1 | |||
| water piping | Shandong Hongda | 1 | |||
| 7 | Main engine cover cap | ||||
| Cover cap body | Shandong Hongda | 1 | |||
| Aggregate inlet | Shandong Hongda | 1 | |||
| Spray pipe | Shandong Hongda | 1 | |||
| Powder inlet | Shandong Hongda | 1 | |||
| 8 | Receiving hopper | ||||
| Receiving hopper | Shandong Hongda | 1 | |||
| Vibrator | China | 1 | |||
| 9 | Pneumatic system | ||||
| Air compressor | Shandong Yantai | 1 | |||
| Three units | Taiwan Airtac | 1 | |||
| Two units, solenoid valve | Taiwan Airtac | 1 | |||
| Air pipe, connector | Taiwan Airtac | 1 | |||
| 10 | Electrical system(centralized control on the operating console) | ||||
| Batching controller | Jinan Xinrui | 1 | |||
| Contactor | Schneider | 1 | |||
| Breaker | Delixi | 1 | |||
| Operating console, electrical cabinet | Shandong Hongda | 1 |
