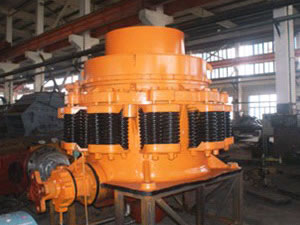

Compound Cone Crusher

The compact size and low weight contributes to a high crushing performance, making the CC Series cone crusher's highly popular world wide. Several thousands of CC Series cone crushers are working around the globe today, a testimony to their first-class reliability and versatility.

Features of Compound cone crusher

The crush cone has long distance to bowl liner in every stroke, so the crusher allows more materiel get into the cavity and produces larger yield, and the materiel pass through the cavity more quickly.
Low cost of daily run and maintenance. Choose the right manufacture materiel and structure, prolong the use life; the long crush arm to reduce the load of slip bearing, gear, and shell; the granularity of the product is uniform which reduces the cycle load; the system of cleaning cavity with hydraulic pressure is convenient , save time, low power and distribution in reason.
1. Proper selection of crushing chamber for material to be crushed.
2. A feed grading containing proper distribution of the particle size.
3. Controlled feed rate adopted in the cone crusher.
4. Proper feed distribution 360° around crushing chamber.
5. Discharge conveyor sized to carry maximum crusher capacity.
6. Properly sized scalping and closed circuit screens.
7. Automation controls is used in the cone crusher.
8. Adequate crusher discharge area

Principle of Compound cone crusher
After the material has slid down a short distance, the larger lumps or masses of the material are crushed into smaller masses by the impact created when these lumps are caught between the crushing head wall and the inner wall of the mantle jacket, as the head approaches a portion of the mantle wall.
The size of the crushed product can be regulated by raising or lowering the mantle by means of the sprocket nuts, thereby increasing or decreasing the cross section of the crushing cavity.

Compound cone crusher is widely used to break medium hard or harder materials. We supply four types (Course, Medium, Fine and Extra Fine Chamber) for your option. We adopt best combination for the crushing frequency and eccentric distance to make the better performance. The capacity is much higher than counterparts. At the same time, our design strengthens compaction force between particles. That can ensure Cubic final products.

MITG has adopted technical platform and combined with practical production experience, also designed and developed and developed new generation compound cone crusher. This new design optimizes the structure, increases its capacity, improve its performance, and enhance its cost performance ratio. We have obvious advantages in large crushing production line as secondary, tertiary crusher to break hard or extra hard materials. compound cone crusher can be widely used to all kinds of fields. Especially for the Extra Fine, Type. It can break the material to 5mm. it is excellent choice for iron ore production line. Its technical advantage is incomparable for our counterparts.

Features
1.  Advanced technical platform support and more reasonable structure can optimize its performance.
2. Readjusted crushing frequency and eccentric distance adopted to greatly increase its capacity.
3. Compound cone crushing chamber can ensure cubic shape of final product.
4. Efficiently make sure of materials overlay-crushing principle to decrease wear rating.
5. It is very easy to operate the machine via introducing hydraulic adjustment device.
6. Chamber clearing process can be done within 10 minutes by adopting hydraulic chamber clearing device.
7. Due to refined process of inner movable cone, we need not do the finish complicated steps such like: add adhesive and clear surface of main shaft when replace movable cone. That would greatly simplify the process to replacement and save you time.
8. For Oil-way of the cone crusher machine, we use dynamic sealing, no need water and grease. So the core running assembly will work reliably and prolong its service life.
9. Perfect operating and inspecting system can ensure protect body in all aspects.

Model Chamber
type
Max Feeding Size(mm) Min Discharge Size(mm) Power
(kw)
Crushing Capacity(t/h) Weight
(Kg)
End discharge opening size(mm)
6 10 13 16 19 22 25 38 51 65
CC600 C 95 10 37-45 20 25 30 35 45 50 76 5300
M 72 6 37-45 18 20 25 30 35 40 45 60 5300
CC1000 C 160 13 90-110 80 100 135 150 175 235 10800
M 115 10 90-110 65 75 90 120 135 150 10800
F 80 8 90-110 52 62 72 78 115 10510
EF 50 6 90-110 50 55 65 70 102 10510
CC1160 C 180 13 110-132 115 135 150 180 200 260 15500
M 130 10 110-132 100 110 120 135 165 175 15500
F 90 10 110-132 80 105 110 140 15500
EF 60 6 110-132 60 74 105 110 130 15500
CC1300 C 200 16 132-160 150 180 200 230 310 390 22300
M 150 13 132-160 115 140 160 190 210 22300
F 102 10 132-160 90 115 145 160 22300
EF 70 8 132-160 88 110 135 155 22300
CC1380 C 215 19 185-220 200 220 260 350 440 26300
M 160 16 185-220 155 180 200 220 26300
F 115 13 185-220 150 190 210 230 26300
EF 76 8 185-220 122 148 185 200 26300
CC1500 C 235 22 185-220 265 310 420 525 580 37750
M 175 19 185-220 215 240 265 320 37750
F 130 13 185-220 180 210 235 255 275 37750
EF 90 10 185-220 148 178 200 220 37750
CC1680 C 267 22 250-300 330 390 525 655 725 44300
M 203 16 250-300 230 270 300 330 44300
F 140 13 250-300 185 225 265 265 340 44300
EF 95 10 250-300 180 220 260 335 44300

Note:  C=Coarse M=Medium F=Fine EF=Extra Fine
Capacity and Min-discharge opening data is based on materials with density of 1.6T/CBM. The actual performance may very, to some extent, when the raw materials are different in size, stone type, water content.
