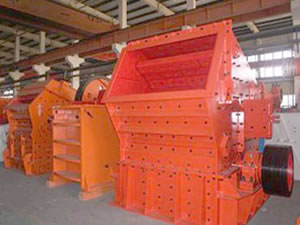

Impact Crusher

Product Introduction
MITG PF Series impact crushers feature a unique combination of heavy-duty rotor, crushing chamber and wear material. Dealing with the material no more than 350Mpa anti-pressure strength, Impact Crusher can be widely used in the first and secondary crushing.
During the process of operating, the rotor in high speed will be brought along by the electric motor. The material will be stricken by the Flat Hammer to be crushed, and then be countered to the liner for the second crushing, then be discharged through the discharge opening.

Features of impact crusher
A range for every type of application
Unique hammer attachment system for increased security
Easy to operate and maintain
Wide range of hammer and liner materials including manganese,
Martensitic, high chrome and ceramic insert

Impact Crusher Operating Principle:
This impact crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The impact crusher employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of theimpact crusher.

Model Size of feed opening
(mm × mm)
Max. feed size(mm) Capacity (t/h) Power
(kw)
Weight
(t)
Dimensions
(mm)
PF-1007 730×400 300 24-45 55 9.5 2400×1558×2660
PF-1010 1080×400 350 50-80 75 10 2532×1985×2196
PF-1210 1080×400 350 80-130 110 14 2690×2015×2890
PF-1214 1430×400 350 100-160 132 18 2690×2385×2890
PF-1315 1520×860 350 140-200 220 19.3 3096×2800×2667
PF-1316 1640×880 350 150-220 200 19.5 3096×2850×2667
PF-1516 1640×900 360 240-290 260-280 26.5 3400×3550×3285
