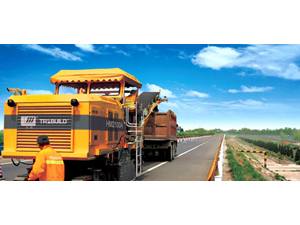

HM2100A Milling Machine

HM2100A milling machine is a large efficient road maintaining equipment, adopting the most excellent milling drum design.

HM2100A milling machine adopts 4-track all drive travel type, equipped with high-power engine, advanced digital integrated control system, and automatic leveling system, featuring advanced performance, unique structure, flexible operation, strong working capacity, high efficiency, and economical applicability.

Features:
1. Adopt high-power configuration, featuring strong working capacity and working condition adaptability.
2. The intellectual control system of mechanical-electrohydraulic integration makes the machine fully display its performance. The patent techniques and innovative design make sure the advanced performance of the machine.
3. The core parts are all imported, improving the reliability of the machine. The operation design suits ergonomics, improving the working comfort and efficiency.
4. The all-round digital display monitoring and warning alarm of working condition benefit the diagnosis and maintenance of troubles, and the advanced automatic leveling device features easier operations and more precise milling depth control.

Name	Unit	Parameter	Name	Unit	Parameter
Milling Width	mm	2100	Control Mode		CAN
Milling Depth	mm	0-320	Automatic Leveling		Standard Configuration
Milling Speed	m/min	0-25	Conveying Belt Width	mm	800
Travel Speed	km/h	0-5	Max. Conveying Height	mm	4700
Engine Model		QSX15-C600	Diesel Oil Tank Capacity	L	1320
Engine Power	kW	447	Water Tank Capacity	L	3500
Track Size	mm	170	Hydraulic Oil Tank Capacity	L	300
Grade ability	%	≥80	Overall Weight	kg	32000
Drive Mode		Mechanical Belt	Appearance Dimensions	mm	14800×2830×4100
