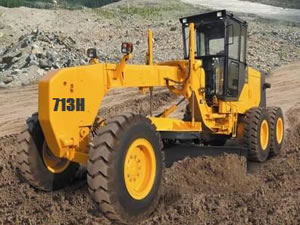

713H Motor Grader

713H Motor Grader

Features:
1. The efficient environmental protection dongfeng cummins turbocharged engine, and ChangLin drive system proven, go up in the design special emphasis on parts strength and safety coefficient, reliable performance.
2. Choose electric liquid control power shift gearbox, single handle operation.
3. Rear axles with automatic locking release of differential, the balance for chain wheel drive, choose super enhanced double row roller chain.
4. adopts full hydraulic steering system, steering Angle is big, the minimum steering radius is better than the domestic similar products.
5. The single gear oil pump via diverter valve to two control valve oil, including rotary oil circuit and interflow, such already ensuring each movement speed, and the whole system with low energy consumption.
6. In the work device ascension, side pendulum, frame articulated, front wheel side pendulum, and other back to the road set hydraulic lock, realizes accurate control of action.
7. all adopt A font U section structure, the structure is simple, high strength, turn over the flexible, and can realize shovel knife 90 ° inclined and gear ring 360 ° rotation
8. Crane brake adopts full hydraulic braking system.
Nine unique on turn over the type of shield design. the greatest degree of for user consideration, maintenance is very convenient. Bridge internal design gives full consideration to the driver's comfort.

Parameters:

130 horsepower
Power rating KW: 97
Operating weight kg: 12000
Overall length mm: 8060
Overall width   mm: 2600
Overall height mm: 3370
Blade length mm: 3660
Maximum traveling speed: 48.5
Min. turning radius: 7300
