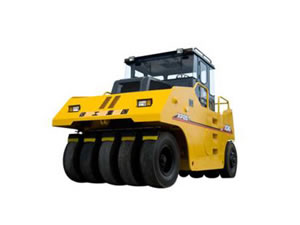

| Model | Unit | XP261 |
| Min. working weight | kg | 14500 |
| Max. working weight | kg | 26000 |
| Water counterweight weight | kg | 4500 |
| Counterweight weight | kg | 7000 |
| Theoretical gradeability | % | 20 |
| Min. turning external radius | mm | 9000 |
| Min. ground clearance | mm | 290 |
| Tyre overlap amount | mm | 50 |
| Front wheel swing range | mm | ±45 |
| Compaction width | mm | 2750 |
| Ground pressure | kPa | 250~420 |
| Wheel base | mm | 3840 |
| Travel speed | km/h | 0~8 |
| km/h | 0~20 | |
| Tyre specification | 11.00-20 | |
| Tyre tread | Smooth | |
| Tyre amount | Front 5 rear 6 | |
| Engine model | D6114ZG10B | |
| Rated speed | r/min | 2000 |
| Rated power | kw | 115 |
| Engine oil consumption | g/kW•h | 224 |
| Water tank capacity | L | 4500 |
| Hydraulic oil tank capacity | L | 90 |
| Fuel tank capacity | L | 180 |
