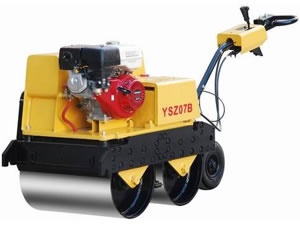

YSZ07B Walking Behind Vibratory Roller

YSZ07B Walking Behind Vibratory Roller

Description:
YSZ07B walking vibratory roller is YSZ06B on the basis of the modification products, with the hand starting device, easy to use, compaction effect is good. The original HONDA (HONDA) GX270 gasoline engine, starting and emission performance is good; Engine installed in the fuselage inside, the left can welt compaction, don't touch the wall ahead; Double steel wheel mechanical drive, double steel wheel vibration.
This machine is small double steel wheel walking vibratory roller, applicable to all kinds of road repair and highway shoulder, sidewalks, parking lot, stadium and garden lawn rolling work, especially suitable for compaction pipeline and drainage groove narrow site, such as compaction work.

Features:
1, mechanical all wheel drive, has the bigger grade ability.
2, the machine has compact structure, small size, can be used in narrow site compaction work.
3, a guide wheel and joystick, steering effort.
4, is equipped with imported Honda petrol engine, energy saving, environmental protection, less emissions.

Features

Operating mass 710kg
Exciting force 15kN
Traveling speed 0-3km/h
Gradeability 25%
Overall dimension 2350X795X1050mm
Engine model GX270
Engine power 5.1kW
Turn radius 2700mm
Drum width 600mm
Amplitude 0.25mm
Sprinkler tank capacity 30L
