Description:

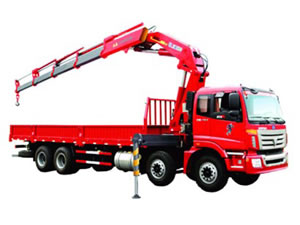

Truck crane (truck with crane) Official name: Truck crane truck, it is widely used in municipal construction, coal Lifting and transport infrastructure works, landscaping materials and other equipment. Lorry hanging around operation, can be both positive and negative 360-degree rotation, but also the full range of rotation. Major tonnage 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, can be divided in accordance with the structure Telescopic (straight arm) and folding arm. Truck crane (truck with crane) is a truck-mounted cranes and chassis together a transport vehicle. Boom, turntable, rack, legs, and other parts. Through institutions such as amplitude, scaling, rotation, winch action to achieve the mechanical action of the lorry crane lifting operations, realized through the combination of different actions.
| Model | SQ16ZK4Q | Unit |
| Max Lifting Moment | 40 | t. m |
| Max Lifting Capacity | 16000 | kg |
| Recommend Power Needed At Recommend Oil Flow | 37 | kW |
| Max Oil Flow of Hydraulic System | 63 | L/min |
| Rated Pressure Of Hydraulic System | 31.5 | MPa |
| Oil Tank Capacity | 250 | L |
| Rotation Angle | (360°) All Rotation | |
| Crane Weight | 5000 | kg |
| Installation Space | 1500 | mm |
| Choice of Chassis | NXG1310D3ZEX, BJ1317VNPJJ-S5, DFL1311A3 | |
