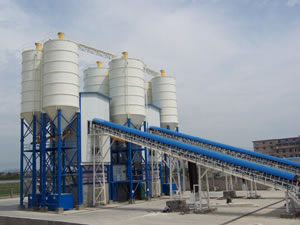

HZS240 Concrete Mixing Plant Configuration Table
| Item | Configuration | Specification, model | Producing area | Qty | Unit |
| Proportioning system PL6400 | Aggregate bin | each bin 25m³ | HONGDA | 4 | piece |
| Aggregate metering bin | HONGDA | 4 | piece | ||
| Weighing sensor | America TRANSCELL | 4 | set | ||
| Aggregate output belt conveyor | 1000 mm width(with cleaner) | HONGDA | 1 | piece | |
| Cylinder | SI-100-300 | TAIWAN AIRTAC | 12 | piece | |
| Vibrator | MVE200/3 | Italy WAM | 4 | piece | |
| Vibrator | MVE100/3 | Italy WAM | 2 | piece | |
| Frame | HONGDA | 1 | piece | ||
| Aggregate hoisting system | Flat belt | 1200 mm width,18° | China | 1 | piece |
| Motor | 55 KW | China | 1 | piece | |
| Axes-mounted reducer | ZGY710.100 | China | 1 | piece | |
| Tightening device | HONGDA | 1 | set | ||
| Cleaning device | HONGDA | 1 | set | ||
| Upper and lower support roller | HONGDA | 1 | set | ||
| Machine frame | Double walkway | HONGDA | 1 | set | |
| Color armor plate casing | HONGDA | 1 | set | ||
| Mixing main engine | JS4000 Mixing tank body | HONGDA | 1 | piece | |
| Reducer | 313 | Italy Bonfiglioli | 2 | piece | |
| Motor | 75 KW | China | 2 | piece | |
| Discharge system | Nanjing | 1 | set | ||
| Lubricating system | Nanjing | 1 | set | ||
| Shaft end main sealing parts | Import | 1 | set | ||
| Mixing main building | Main building support leg | HONGDA | 1 | set | |
| Finished receiving hopper | With 2 cylinders and pinch rolls | HONGDA | 1 | piece | |
| Maintenance platform of receiving hopper | HONGDA | 1 | piece | ||
| Mixing floor | HONGDA | 1 | piece | ||
| Metering floor | HONGDA | 1 | piece | ||
| Transition bin | HONGDA | 1 | piece | ||
| Weighing sensor | America TRANSCELL | 1 | set | ||
| Cylinder | SI-125-200 | TAIWAN AIRTAC | 2 | piece | |
| Vibrator | MVE100/3 | Italy WAM | 2 | piece | |
| Building top | HONGDA | 1 | piece | ||
| Stair walkway | HONGDA | 1 | set | ||
| Exterior casing | 75mm Warming plate | HONGDA | 1 | set | |
| Dust collector system | SCM-10 | Italy SICOMA | 1 | set | |
| High pressure cleaning system | SL40A | Shenlong | 1 | set | |
| Water weighing system | Water weighing box | HONGDA | 1 | piece | |
| Weighing sensor | America TRANSCELL | 3 | piece | ||
| Butterfly valve | Italy WAM | 2 | piece | ||
| Water storage box | HONGDA | 1 | piece | ||
| Liquid indicator | TANWAN Anly | 1 | set | ||
| Water pump | China | 2 | piece | ||
| Pipeline | HONGDA | 1 | set | ||
| Cement metering system | Weighing bin | HONGDA | 1 | piece | |
| Weighing sensor | America TRANSCELL | 3 | piece | ||
| Butterfly valve | V1FS350SN-CP101 | Italy WAM | 1 | piece | |
| Vibrator | MVE60/3 | Italy WAM | 1 | piece | |
| Flyash weighing system | Weighing bin | HONGDA | 1 | piece | |
| Weighing sensor | America TRANSCELL | 3 | piece | ||
| Butterfly valve | V1FS250SN-CP101 | Italy WAM | 1 | piece | |
| Vibrator | MVE60/3 | Italy WAM | 1 | piece | |
| Additive weighing system | Additive weighing box | HONGDA | 1 | piece | |
| Weighing sensor | America TRANSCELL | 1 | piece | ||
| Butterfly valve | China | 3 | piece | ||
| Additive box | HONGDA | 2 | piece | ||
| Liquid indicator | China | 2 | set | ||
| Additive pump | China | 2 | piece | ||
| Pipeline | HONGDA | 2 | set | ||
| Pneumatic system | Air compressor | TAIWAN Fusheng | 1 | piece | |
| Solenoid valve | TAIWAN AIRTAC | 1 | set | ||
| Pipeline system | TAIWAN AIRTAC | 1 | set | ||
| Air storage | CQG-0.1 | Yantai | 2 | piece | |
| Electric control system | Strong electric cabinet | HONGDA | 1 | piece | |
| Weak electric cabinet | HONGDA | 1 | piece | ||
| Control console | HONGDA | 1 | piece | ||
| Control room | HONGDA | 1 | piece | ||
| Industrial computer | IPC810 | EVOC | 2 | piece | |
| LCD | 17" | Lenovo | 2 | piece | |
| Contactor | Schneider/ABB | 1 | set | ||
| Circuit breaker | Schneider/ABB | 1 | set | ||
| Mini relay | APT/OMRON | 1 | set | ||
| PLC | OMRON | 1 | set | ||
| UPS | TG500 | SANTEK | 2 | piece | |
| Air condition | 1.5匹 | Midea | 1 | piece | |
| Electric control assistant component | China | 1 | set | ||
| Monitor | SP-14 | SUNSPO | 2 | piece | |
| Monitor | SP-942 | SUNSPO | 2 | piece | |
| Printer | KX-P1121 | Panasonic | 1 | piece | |
| Connecting cable and accessory | China | 1 | set | ||
| Powder supply system(User choice) | Cement screw | φ406 | Italy SICOMA | radix | |
| Flyash screw | φ323 | Italy SICOMA | radix | ||
| Powder pot | HONGDA | piece |
