Vehicle description:

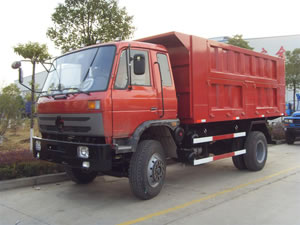

| Product | Dongfeng 145 dumper truck |
| Chassis model | EQ3108G19DJ |
| Payload(kg) | 5000 |
| Engine model | YC4E140-20 |
| Displacement/Power(ml/kw) | 4257/100 |
| Actual cubage(m3) | Van length 4.1m,4.7m,5.2m,5.4m |
| Chassis description: | |
| Overall dimension(mm) | 6570/7200/7600/7800×2470×2890 |
| Wheelbase(mm) | 3950/4200/4500 |
| Transmission | 5 gear mechanical transmission |
| Steering gear | Power steering |
| Braking system | Central drum braking |
| Clutch | φ350MM diaphragm clutch |
| Front axle | 3.6T |
| Rear axle | 9.0T rear bridge, the reduction ratio 6.33 |
| Frame description | Double-beam |
| Max section area | 250*80*(7+5) |
| Cab | CPB12 G non-longheaded with sleeper cab |
| Air-condition | Choose to fix non-fluorine air-condition |
Engine Description:
| Engine model | YC6J180-20 |
| Type | 6-in-line、Water-cooling 4-stroke、overhead valve diesel engine |
| Max power(kW) | 132 |
| Displacement(ml) | 6494 |
| Max torque(N。m) | 590 |
| Cylinder diameter/Stroke(mm) | 105/125 |
| Fuel type | diesel |
| Parameters above mentioned are referential, and our company reserves the right of product improving. | |
