| Main Parameters | |
| Operating weight:rubber track | 1880kg |
| Standard bucket capacity | 0.04m3 |
| Bucket digging force | 13.1kN |
| UNDERCARRIAGE & SWING | |
| Travelling speed | 3.5 / 2 (km/h) |
| Max. gradeability | 30° |
| Swing speed | 11.5rpm |
| ENGINE | |
| Model | PERKINS 403C-11 |
| Type | 3-cycle, water-cooled, indirect injection |
| Max. power/rpm | 14.7kw / 2200rpm |
| Displacement | 1.1L |
| Fuel tank | 21L |
| HYDRAULIC SYSTEM | |
| Type | Nachi |
| Main pump | 2 x 21 + 15 (L/min) |
| Max. pump flow | 2 x 21 + 15 (L/min) |
| Max. operating pressure | 20 / 18 (Mpa) |
| Hydraulic oil tank | 17L |
| Working parameters | |

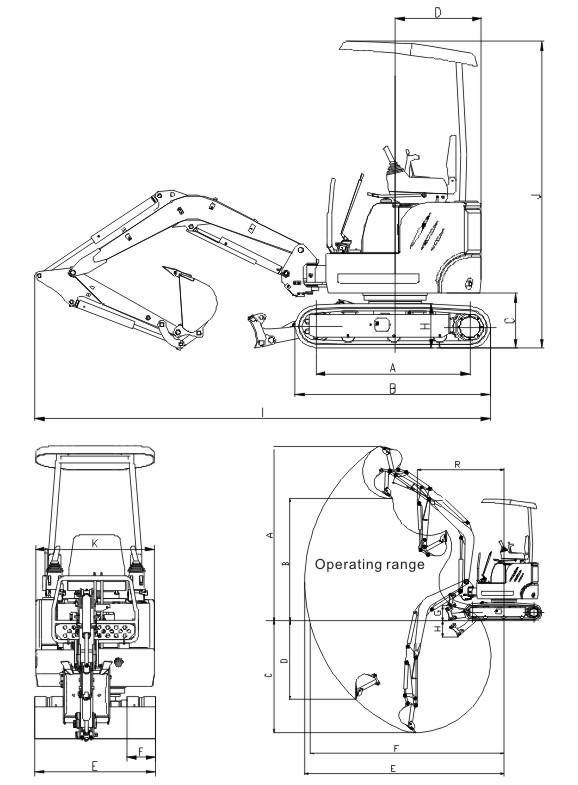

| WORKING RANGE | |
| A. Max. digging height | 3458mm |
| B. Max. dumping height | 2431mm |
| C. Max. digging depth | 2206mm |
| D. Max. vertical digging depth | 1590mm |
| E. Max. digging radius | 3942mm |
| F. Max. reaching level at ground | 3848mm |
| G. Max. llifting height of blade | 216mm |
| H. Max. digging depth of blade | 270mm |
| R. Min. swing radius | 1794mm |
| Width & height of blade | 1320 x 267 (mm) |
| TRANSPORTATION DIMENSION | |
| A. Track base | 1210mm |
| B. Crawler length | 1538mm |
| C. Ground clearance of platform | 435.5mm |
| D. Tail swing radius | 680mm |
| E. Chassis width | 990 / 1320 (mm) |
| F. Standard width of crawler | 230mm |
| G. Min. ground clearance | 160mm |
| H. Max. ground clearance of crawler | 352mm |
| I. Overall length | 3582mm |
| J. Overall height | 2415mm |
| J. Overall height | 990mm |
