| Main Parameters | |
| Operating weight:rubber track | 2580kg |
| Standard bucket capacity | 0.066m3 |
| Bucket digging force | 20.8kN |
| UNDERCARRIAGE & SWING | |
| Travelling speed | 4.7 / 2.6 (km/h) |
| Max. gradeability | 30° |
| Swing speed | Swing speed |
| ENGINE | |
| Model | YANMAR 3TNV82A |
| Type | 3-cylinder, 4 stroke, water-cooled |
| Max. power/rpm | 16kw / 2200rpm |
| Max. power/rpm | 1.331L |
| Fuel tank | 42.5L |
| HYDRAULIC SYSTEM | |
| Type | KYB |
| Main pump | 2 Variable pumps, 1 Gear pump |
| Max. pump flow | 2 x 29 + 21 (L/min) |
| Max. operating pressure | 23.5 / 20 (Mpa) |
| Hydraulic oil tank | 30L |
| Working parameters | |

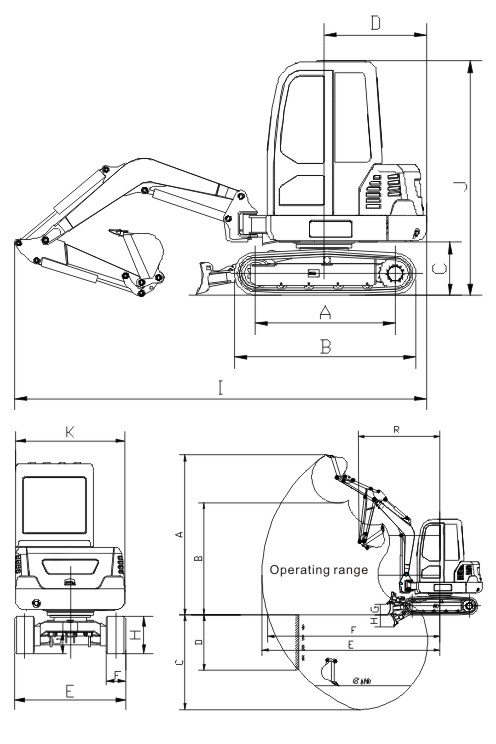

| WORKING RANGE | |
| A. Max. digging height | 4018mm |
| B. Max. dumping height | 2812mm |
| C. Max. digging depth | 2375mm |
| D. Max. vertical digging depth | 1533mm |
| E. Max. digging radius | 4317mm |
| F. Max. reaching level at ground | 4317mm |
| G. Max. llifting height of blade | 270mm |
| H. Max. digging depth of blade | 310mm |
| R. Min. swing radius | 2052mm |
| Width & height of blade | 1400 x 324 (mm) |
| TRANSPORTATION DIMENSION | |
| A. Track base | 1856mm |
| B. Crawler length | 1856mm |
| C. Ground clearance of platform | 546mm |
| D. Tail swing radius | 1050mm |
| E. Chassis width | 1400mm |
| F. Standard width of crawler | 250mm |
| G. Min. ground clearance | 280mm |
| H. Max. ground clearance of crawler | 473mm |
| I. Overall length | 4219mm |
| J. Overall height | 2399mm |
| K. Overall width | 1400mm |
