| Main Parameters | |
| Operating weight:rubber track / steel track | 3460 / 3470 (kg) |
| Standard bucket capacity | 0.08m3 |
| Bucket digging force | 18.2kN |
| UNDERCARRIAGE & SWING | |
| Travelling speed | 4.3 / 2.4 (km/h) |
| Max. gradeability | 30° |
| Swing speed | 9.8rpm |
| ENGINE | |
| Model | YANMAR 3TNV88-BSSU |
| Type | 3-cylinder, 4 stroke, water-cooled |
| Max. power/rpm | 19.3kw / 2200rpm |
| Displacement | 1.642L |
| Fuel tank | 38L |
| HYDRAULIC SYSTEM | |
| Type | Nachi |
| Main pump | 2 Variable pumps, 1 Gear pump |
| Max. pump flow | 2 x 33 + 19 (L/min) |
| Max. operating pressure | 23.5 / 20 (Mpa) |
| Hydraulic oil tank | 40L |
| Working parameters | |

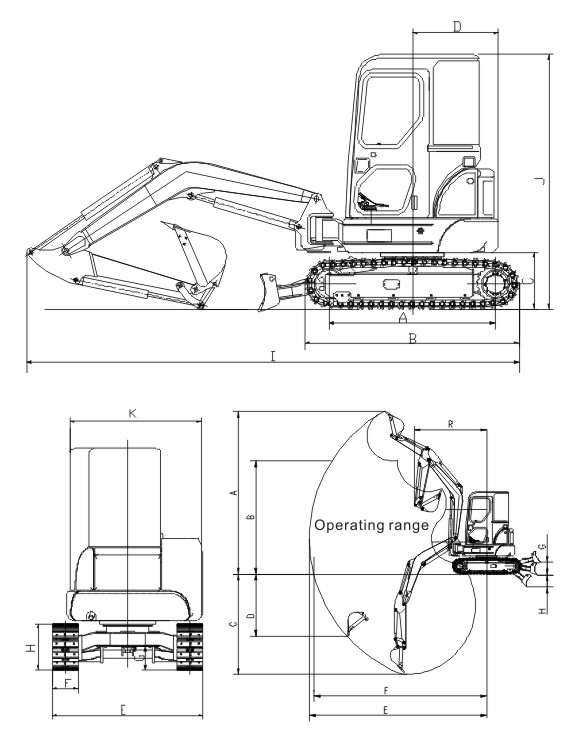

| WORKING RANGE | |
| A. Max. digging height | 4393mm |
| B. Max. dumping height | 3231mm |
| C. Max. digging depth | 2477mm |
| D. Max. vertical digging depth | 1759mm |
| E. Max. digging radius | 4883mm |
| F. Max. reaching level at ground | 4757mm |
| G. Max. llifting height of blade | 326mm |
| H. Max. digging depth of blade | 374mm |
| R. Min. swing radius | 2081mm |
| Width & height of blade | 1560 x 380 (mm) |
| TRANSPORTATION DIMENSION | |
| A. Track base | 1500mm |
| B. Crawler length | 1973mm |
| C. Ground clearance of platform | 568mm |
| D. Tail swing radius | 780mm |
| E. Chassis width | 1560mm |
| F. Standard width of crawler | 300mm |
| G. Min. ground clearance | 256.5mm |
| H. Max. ground clearance of crawler | 522mm |
| I. Overall length | 4515mm |
| J. Overall height | 2538mm |
| K. Overall width | 1564mm |
