| Main Parameters | |
| Operating weight:rubber track / steel track | 4130 / 4140 (kg) |
| Standard bucket capacity | 0.11m3 |
| Bucket digging force | 26.4kN |
| UNDERCARRIAGE & SWING | |
| Travelling speed | 5 / 2.9 (km/h) |
| Max. gradeability | 30° |
| Swing speed | 10.5rpm |
| ENGINE | |
| Model of Compact Excavator | KUBOTA D1803-M-DI-E3B-SWD-1 |
| Type | 3-cylinder, 4 stroke, water-cooled |
| Max. power/rpm | 23.8kw / 2300rpm |
| Displacement | 1.826L |
| Fuel tank | 40L |
| HYDRAULIC SYSTEM | |
| Type | KYB |
| Main pump | 2 x 37 + 26 (L/min) |
| Max. pump flow | 2 x 37 + 26 (L/min) |
| Max. operating pressure | 23.5 / 20 (Mpa) |
| Hydraulic oil tank | 43L |
| Working parameters | |

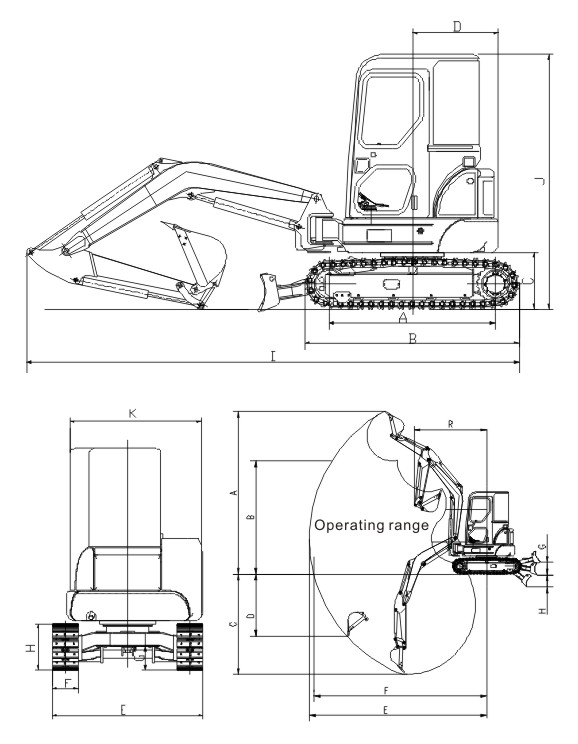

| WORKING RANGE | |
| A. Max. digging height | 5002mm |
| B. Max. dumping height | 3502mm |
| C. Max. digging depth | 2850mm |
| D. Max. vertical digging depth | 2593mm |
| E. Max. digging radius | 5441mm |
| F. Max. reaching level at ground | 5302mm |
| G. Max. llifting height of blade | 345mm |
| H. Max. digging depth of blade | 370mm |
| R. Min. swing radius | 2302mm |
| Width & height of blade | 1740 x 349 (mm) |
| TRANSPORTATION DIMENSION | |
| A. Track base | 1650mm |
| B. Crawler length | 2143mm |
| C. Ground clearance of platform | 567mm |
| D. Tail swing radius | 860mm |
| E. Chassis width | 1740mm |
| F. Standard width of crawler | 300mm |
| G. Min. ground clearance | 262mm |
| H. Max. ground clearance of crawler | 522mm |
| I. Overall length | 4950mm |
| I. Overall length | 2540mm |
| K. Overall width | 1745mm |
