| Main Parameters | |
| Operating weight:rubber track / steel track | 8160 / 8250 (kg) |
| Standard bucket capacity | 0.28m3 |
| Bucket digging force | 47.7kN |
| UNDERCARRIAGE & SWING | |
| Travelling speed | 5.23 / 2.67 (km/h) |
| Max. gradeability | 35° |
| Swing speed | 11.2rpm |
| ENGINE | |
| Model of Compact Excavator | YANMAR 4TNV98-ZSSU |
| Type | 4-cylinder, 4 stroke, water-cooled |
| Max. power/rpm | 43.4kw / 2200rpm |
| Displacement | 3.32L |
| Fuel tank | 110L |
| HYDRAULIC SYSTEM | |
| Type | Rexroth |
| Main pump | 1 Variable pump |
| Max. pump flow | 160L/min |
| Max. operating pressure | 28Mpa |
| Hydraulic oil tank | 80L |
| Working parameters | |

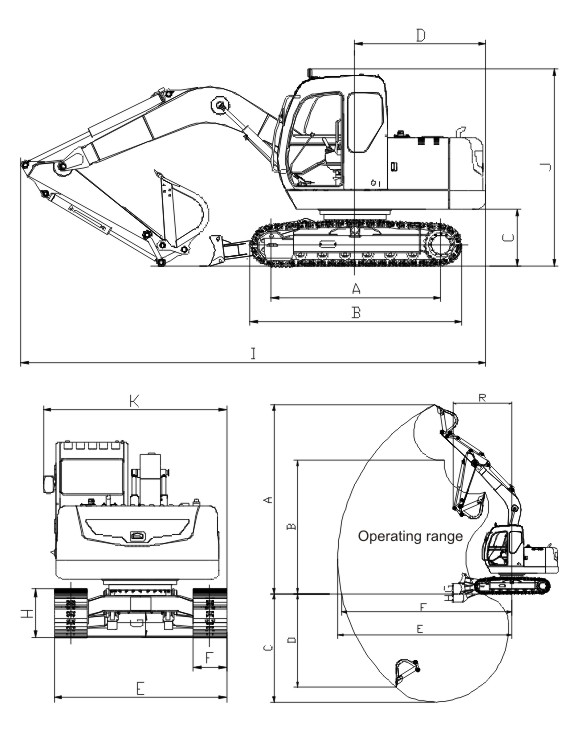

| WORKING RANGE | |
| A. Max. digging height | 7021mm |
| B. Max. dumping height | 4985mm |
| C. Max. digging depth | 3886mm |
| D. Max. vertical digging depth | 3270mm |
| E. Max. digging radius | 6406mm |
| F. Max. reaching level at ground | 6234mm |
| G. Max. llifting height of blade | 412mm |
| H. Max. digging depth of blade | 280mm |
| R. Min. swing radius | 1982mm |
| Width & height of blade | 2320 x 431 (mm) |
| TRANSPORTATION DIMENSION | |
| A. Track base | 2335mm |
| B. Crawler length | 2918mm |
| C. Ground clearance of platform | 754mm |
| D. Tail swing radius | 1295mm |
| E. Chassis width | 2320mm |
| F. Standard width of crawler | 450mm |
| G. Min. ground clearance | 344mm |
| H. Max. ground clearance of crawler | 650mm |
| I. Overall length | 5936mm |
| J. Overall height | 2678mm |
| K. Overall width | 2320mm |
