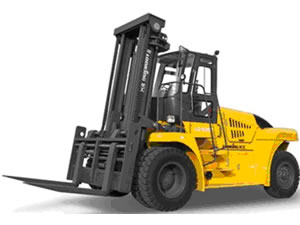

Forklift LG160DT:
1. Very stable air-over-oil brake system.
2. Wide view mast.
3. Parker hydraulic component ensured system stable and reliable.
4. ZL50 gear-box with good traction performance.
5. Widely used in loading and unloading, stacking and short distance transportation of articles at port, dock and warehouse.
Overall Data of diesel Forklift LG160DT
Parameter
| Model Number | LG160DT |
| Power Type | Diesel |
| Load capacity | 16 000kg |
| Overall L×H×W | 7500×3925×2776 mm |
| Battery Capacity | 128kw |
| Engine | YUCHAICYCA125Z |
| Optional | ISUZU 6BG1 |
| Load center(mm) | 600 |
| STD Max lifting height(mm) | 3000 |
| Free lift height(mm) | 205 |
| Fork size(mm) | 1370×150×75 |
| Mast tilt angle(deg) | 9/12 |
| Front overhang (mm) | 700 |
| Rear overhang (mm) | 780 |
| Min. turning radius (mm) | 5800 |
| Min. intersecting aisle(mm) | |
| Speed (load/unload) | |
| Max. Traveling speed (km/h) | 25/25 |
| Max. lifting speed (mm/s): | 400/300 |
| Max gradient (load/unload) (%): | 20 |
| Dead weight (kg) | 10700 |
| Tread (front/rear) (mm) | 1534/1700 |
| Axle distance (mm) | 2500 |
| Min ground clearance | |
| Mast(mm) | 225 |
| Frame(mm) | 270 |
