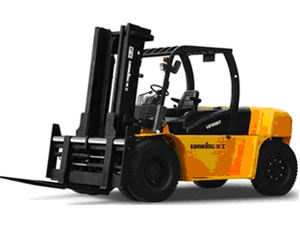

Dieselforklift LG100DT:
1. Advanced agronomical design
2. the most rational position of center of gravity is determined by computer simulation.
3. The lift system adopts wide view mast.
4. Large capacity radiator and international advanced radiation technology,
5. Wire harness and waterproof plugging with latest developed technology, multi-line fuse layout.
6. Good stability and high reliability of hydraulic system.
7New type hydraulic transmission and powerful engine
8. Transverse cylinder steering axle provides larger steering angel and lower turning radius
Overall Data of diesel Forklift LG100DT
Parameter
| Model Number | LG100DT |
| Power Type | Diesel |
| Load capacity | 10 000kg |
| Overall L×H×W | 5480×2850×2230mm |
| Battery Capacity | 81kw |
| Engine | CHAOCHAI YC6B125-T20 |
| Optional | ISUZU 6BG1 |
| Load center(mm) | 600 |
| STD Max lifting height(mm) | 3000 |
| Free lift height(mm) | 205 |
| Fork size(mm) | 1370×150×75 |
| Mast tilt angle(deg) | 9/12 |
| Front overhang (mm) | 700 |
| Rear overhang (mm) | 780 |
| Min. turning radius (mm) | 4000 |
| Min. intersecting aisle(mm) | |
| Speed (load/unload) | |
| Max. Traveling speed (km/h) | 25/27 |
| Max. lifting speed (mm/s): | 350/310 |
| Max gradient (load/unload) (%): | 18 |
| Dead weight (kg) | 10700 |
| Tread (front/rear) (mm) | 1534/1700 |
| Axle distance (mm) | 2500 |
| Min ground clearance | |
| Mast(mm) | 225 |
| Frame(mm) | 270 |
