Light Vibratory Roller

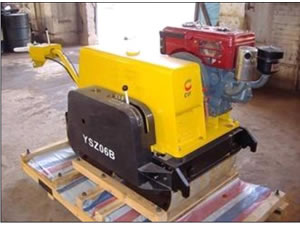

1.YSZ06B Light Vibratory Roller(0. 6ton)

Description:
The 0.6ton YSZ06B light vibratory roller is small-size double drum walk-behind vibratory rollers. The machine is used to compact and maintain various roads, express way shoulder, side walk, parking area, sports ground and garden lawn, especially suited for compaction of narrow areas, such as pipeline channel and drainage trench etc.

Features:
1. Mechanical all-drum travel drives are charactered by grate grade ability.
2. The light vibratory roller is compact and small.
3. This engineering machine can be easily turned with the guide wheels and control level.
Parameters of Light Vibratory Roller:
Operation weight: 735kg
Vibration amplitude: 0.25mm
Vibration frequency: 48Hz
Centrifugal force: 12KN
Engine: R175AN (Anhui QUAN CHAI)
Rated power: 3.7kw
Overall dimension: 2500x795x1050

2.YSZ08DB-1 Light Vibratory Roller (0.8 ton)
Description:
This engineering machine is small-size double drum walk-behind vibratory roller. It's applied to compacting and maintaining various roads, express way shoulder, side walk, parking area, sports ground and garden lawn, especially suited for compaction of narrow areas, such as pipeline channel and drainage trench etc.
Features:
1. Mechanical all-drum travel drives are with greater grade ability.
2. The light vibratory roller is compact and small.

Parameter:
Model of Light Vibratory Roller: YSZ08DB-1
Weight (Kg): 770
Static line load (N/cm): 46/73
Drum Width (mm): 600
Vibration Frequency (Hz): 48
Centrifugal force (KN): 12
Travel Speed (Km/h): 0-2. 5
Grade ability (%): 40
Diesel:  ChineseCF186F JIANGSU CHANGFA (EPA)
Overall dimension (mm): 2330*795*1050mm
Note: Materials and specifications are subject to change without notice.
