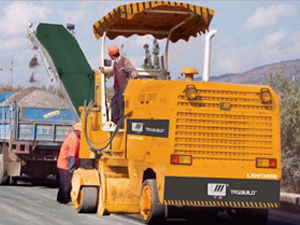

LXH/LXZY series milling machines adopt the most excellent milling drum design, fully considering the stability and productivity.
The configuration of LXH/LXZY series milling machines features excellent performance and strong power. Adopt the reliable SHANGCHAI D6114 supercharged air-intake water-cooled engine and full hydraulic drive system, which can reduce the impact to the machine during milling.
Features:
1. Imported tyres feature high wear resistance and long service life, making sure the adhesive performance of depth milling working.
2. Adopt full hydraulic drive system to reduce the machine impact during milling operation, and equip with the imported pumps, motors, and high-quality hydraulic parts to ensure the machine reliability. The milling drums adopt the optimized design.
3. The milling cutters are imported spirally arrayed, making sure the stable operation and high productivity.
| Name | Unit | Parameter | Name | Unit | Parameter |
| Milling Width | mm | 500 | Control Mode | Manual Operation | |
| Milling Depth | mm | 0-60 | Automatic Leveling | / | |
| Milling Speed | m/min | 0-28 | Conveying Belt Width | mm | / |
| Travel Speed | km/h | 0-14 | Max. Conveying Height | mm | / |
| Engine Model | F4L912 | Diesel Oil Tank Capacity | L | 100 | |
| Engine Power | kW | 46 | Water Tank Capacity | L | 240 |
| Cutter Quantity | 42 | Hydraulic Oil Tank Capacity | L | 160 | |
| Tyre Diameter | mm | 533(Front);408(Rear) | Overall Weight | kg | 4800 |
| Grade ability | % | ≥15 | Appearance Dimensions | mm | 2930×1420×2615 |
| Drive Mode | Full Hydraulic |
