PY165H Motor Grader

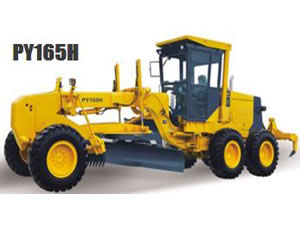

PY165H Motor Grader

Features:
PY165H type grader is by PY165C - 5 to develop export-oriented type, whether performance, work efficiency and operating comfort and appearance are much better than the domestic similar type. The transmission system, hydraulic system, braking system mainly use the imported parts, high reliability, with import grader all functions, and original type parts has quite high interchangeability, but its price performance ratio higher, with domestic manufacturers have any similar type of competition advantage.
L is a kind of multi-purpose shovel transport machinery, mainly for the earth engineering site plastic in peace operations, can also be used to digging channel, slope scraping, bulldozing, snow removal, ripping, mix stabilized soil or other road materials, road construction is an indispensable equipment.

Parameter

165Horsepower
Power rating KW: 123
Operating weight kg: 14500
Overall length mm: 8630
Overall width  mm: 2600
Overall hight mm: 3370
Blade hight  mm: 3660
Max.traveling speed: 48.5
Min. turning radius: 7300
Overall Dimension
1 Length 8630mm
2 Width 2600mm
3 Height(To the top of the cab) 3370mm
4 Wheel base 6100mm
5 Tread 2120mm
Main Technical Specification
1 Operating weight 14500kg
2 Blade length 3660mm
3 Blade height 645mm
4 Blade width 18mm
5 Max lifting height 450mm
6 Max grading depth 535mm
7 Min. turning radius 7300mm
8 Pivot angle frame ±26°
9 Max turning angle(front wheel) ±49°
10 Oscillating angle of front axle 32°
11 Front axle center ground clearance 610mm
12 Traveling speed(Km/h),6 forward and 3 reverse
  (1) Ⅰ gear forward 6.5
(2) Ⅱ gear forward 11.4
(3) Ⅲ gear forward 14.6
(4) Ⅳ gear forward 24.8
(5) Ⅴ gear forward 30
(6) Ⅵgear forward 49.2
(7) Ⅰ gear reverse 6.5
(8) Ⅱ gear reverse 14.6
(9) Ⅲ gear reverse 30
Diesel engine
1 Model Cummins 6BT5.9-C168 Chinese engine D6114ZG9B
2 Type Direct injection. Turbocharged. Water cooling
3 Rated output 125kW 125kW
4 Inter-bore of cylinder/Stroke 102/120 (mm) 114/135 (mm)
5 Total exhaust of cylinder 5.9(L) 8.3(L)
6 Power of start motor 4.5(KW) 7.5(KW)
7 Voltage of starting motor 24(V) 24(V)
8 Rated speed 2200(r/min) 2200(r/min)
9 Max. Torque 733(N.M) 600(N.M)
10 Starting type Electric Electric
11 Min. specific fuel consumption 201(g/Kw.h) 226(g/Kw.h)
12 Net weight 452(kg) 640(kg)
Transmission System
(一)Torque Converter
1 Model WG180 (ZF technology)
2 Type 3-elements.single stage
3 Torque ratio 2.52
4 Cooling type Pressure oil circulating
(二)、Transmission case
1 Model WG180 (ZF technology)
2 Type power shift, single-shift lever, netural-shift lock device
3 Gear shift position 6 Forward and 3 reverse gears
(三)、Axle and Tire
1 Type of main reducer spiral bevel gear, single stage
2 Gear ratio of main reducer 3.583
3 Type of final reducer Single stage chain-drive
4 Gear of ratio of final reducer 3.75
5 Gear ratio 13.436
6 Tandem drive Double row roller-chains
7 Size of tire 17.5-25-12PR
Working Device Hydraulic System
1 Model of oil pump(include steering pump) CBGj2045/1025
2 System pressure 175(kgf/cm2)
3 Model of distribution valve HUSCO5000-D
4 Cylinder CHINESE CHANGLIN
5 Hydraulic lock KAYABA technology
6 Model of oil motor EATON, JS-130
7 Blade load 176kgf
Steering System
1 Type Four Tire deflexion
2 Model of steering gea BZZ1-E160B/ FKA-153022
3 System pressure 15MPa
Brake System
1 Type of traveling brake Hydraulic assisted actuate drum brake
2 System pressure 120(kgf/cm2)
3 Type of parking brake Flexible control and inner-expanding drum brake
Oil Capacity
1 Fuel(diesel) 350L
2 Engine lubricating oil 27L
3 Oil for converter and gear box 45L
4 Oil for hydraulic system 70L
5 Oil for driving rear axles 18L
6 Balance box 84L
