Description:

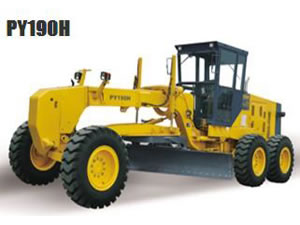

PY190H type grader is by PY190C - 5 to develop export-oriented type, whether performance, work efficiency and operating comfort and appearance are much better than the domestic similar type. The transmission system, hydraulic system, braking system mainly use the imported parts, high reliability, with import grader all functions, and original type parts has quite high interchangeability, but its price performance ratio higher, with domestic manufacturers have any similar type of competition advantage.
Being a kind of multi-purpose shovel transport machinery, mainly for the earth engineering site plastic in peace operations, can also be used to digging channel, slope scraping, bulldozing, snow removal, ripping, mix stabilized soil or other road materials, road construction is an indispensable equipment.
Parameter：
| 190Horsepower | |
| Power rating KW: | 140 |
| Operating weight kg: | 15000 |
| Overall length mm: | 8690 |
| Overall width mm: | 2600 |
| Overall hight mm: | 3370 |
| Blade hight mm: | 4268 |
| Max.traveling speed: | 49.2 |
| Min. turning radius: | 7300 |
| Overall Dimension | ||||
| 1 | Length | 9140mm | ||
| 2 | Width | 2600mm | ||
| 3 | Height(To the top of the cab) | 3370mm | ||
| 4 | Wheel base | 6150mm | ||
| 5 | Tread | 2120mm | ||
| Main Technical Specification | ||||
| 1 | Operating weight | 15200kg | ||
| 2 | Blade length | 4268mm | ||
| 3 | Blade height | 645mm | ||
| 4 | Blade width | 18mm | ||
| 5 | Max lifting height | 450mm | ||
| 6 | Max grading depth | 535mm | ||
| 7 | Min. turning radius | 7300mm | ||
| 8 | Pivot angle frame | ±26° | ||
| 9 | Max turning angle(front wheel) | ±49° | ||
| 10 | Oscillating angle of front axle | 32° | ||
| 11 | Front axle center ground clearance | 610mm | ||
| 12 | Traveling speed(Km/h),6 forward and 3 reverse | |||
| (1) Ⅰ gear forward | 6.5 | |||
| (2) Ⅱ gear forward | 11.4 | |||
| (3) Ⅲ gear forward | 14.6 | |||
| (4) Ⅳ gear forward | 24.8 | |||
| (5) Ⅴ gear forward | 30 | |||
| (6) Ⅵgear forward | 49.2 | |||
| (7) Ⅰ gear reverse | 6.5 | |||
| (8) Ⅱ gear reverse | 14.6 | |||
| (9) Ⅲ gear reverse | 30 | |||
| Diesel engine | ||||
| 1 | Model | Cummins engine 6CTAA8.3-C185 (TIER2) | ShangChai C6121 Engine | |
| 2 | Type | Direct injection. Turbocharged. Water cooling | ||
| 3 | Rated output | 138kW | 143kW | |
| 4 | Inter-bore of cylinder/Stroke | 114/135 (mm) | 121/152 (mm) | |
| 5 | Total exhaust of cylinder | 8.3(L) | 10.48(L) | |
| 6 | Power of start motor | 3.7(KW) | 7.5(KW) | |
| 7 | Voltage of starting motor | 24(V) | 24(V) | |
| 8 | Rated speed | 2200(r/min) | 2200(r/min) | |
| 9 | Max. Torque | 857(N.M) | >748(N.m) | |
| 10 | Starting type | Electric | Electric | |
| 11 | Min. specific fuel consumption | 211(g/Kw.h) | <230(g/Kw.h) | |
| 12 | Net weight | 617(kg) | 960(kg) | |
| Transmission System | ||||
| (一)Torque Converter | ||||
| 1 | Model | WG180 (ZF technology) | ||
| 2 | Type | 3-elements.single stage | ||
| 3 | Torque ratio | 2.52 | ||
| 4 | Cooling type | Pressure oil circulating | ||
| (二)、Transmission case | ||||
| 1 | Model | WG180 (ZF technology) | ||
| 2 | Type | power shift, single-shift lever, netural-shift lock device | ||
| 3 | Gear shift position | 6 Forward and 3 reverse gears | ||
| (三)、Axle and Tire | ||||
| 1 | Type of main reducer | spiral bevel gear, single stage | ||
| 2 | Gear ratio of main reducer | 3.583 | ||
| 3 | Type of final reducer | Single stage chain-drive | ||
| 4 | Gear of ratio of final reducer | 3.75 | ||
| 5 | Gear ratio | 13.436 | ||
| 6 | Tandem drive | Double row roller-chains | ||
| 7 | Size of tire | 17.5-25-12PR | ||
| Working Device Hydraulic System | ||||
| 1 | Model of oil pump(include steering pump) | CBGj2045/1025 | ||
| 2 | System pressure | 175(kgf/cm2) | ||
| 3 | Model of distribution valve | HUSCO5000-D | ||
| 4 | Hydraulic check valve | KAYABA technology | ||
| 5 | Model of oil motor | EATON, JS-130 | ||
| Steering System | ||||
| 1 | Type | Four Tire deflexion | ||
| 2 | Model of steering gea | BZZ1-E160B/ FKA-153022 | ||
| 3 | System pressure | 15MPa | ||
| Brake System | ||||
| 1 | Type of traveling brake | Hydraulic assisted actuate drum brake | ||
| 2 | System pressure | 120(kgf/cm2) | ||
| 3 | Type of parking brake | Mechanical and inner-expanding brake | ||
| Cylinder size | ||||
| 1 | front wheel steering cylinder | Type | Double acting piston | |
| No-bore × rod × stroke | 2－Ф50×35×320(mm) | |||
| 2 | Front wheel leaning cylinder | Type | Double acting piston | |
| No-bore ×rod × stroke | 1－Ф80×40×160(mm) | |||
| 3 | Blade lifting cylinder | Type | Double acting piston | |
| No-bore × rod ×stroke | 2－Ф80×50×1045(mm) | |||
| 4 | Power tilting cylinder | Type | Double acting piston | |
| No-bore × rod ×stroke | 1－Ф80×40×300(mm) | |||
| 5 | Hinge turning cylinder | Type | Double acting piston | |
| No-bore × rod × stroke | 2－Ф90×50×370(mm) | |||
| 6 | Drawbar shift cylinder | Type | Double acting piston | |
| No-bore × rod × stroke | 1－Ф80×45×450(mm) | |||
| 7 | Blade side shift cylinder | Type | Double acting piston | |
| No-bore × rod ×stroke | 2－Ф80×50×1250(mm) | |||
| 8 | Scarifier cylinder | Type | Double acting piston | |
| No-bore × rod × stroke | 1－Ф90×50×300(mm) | |||
| 9 | Front blade cylinder | Type | Double acting piston | |
| No-bore × rod× stroke | 1－Ф90×45×400(mm) | |||
| 10 | Ripper cylinder | Type | Double acting piston | |
| No-bore × rod × stroke | 1－Ф100×50×635(mm) | |||
| Oil Capacity | ||||
| 1 | Fuel(diesel) | 350L | ||
| 2 | Engine lubricating oil | 27L | ||
| 3 | Oil for converter and gear box | 45L | ||
| 4 | Oil for hydraulic system | 70L | ||
| 5 | Oil for driving rear axles | 18L | ||
| 6 | Tandem box | 84L | ||
