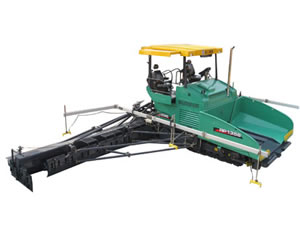

RP1356 intelligent asphalt concrete paver is developed by MITG, featuring multiple international advanced technologies such as intelligent integrated control, group intelligent combination operation, remote monitoring and precise and efficient paving control. The machine leads the development trend in high technology performance, high reliability and high adaption. It is integrated with the advanced technologies of mechanical, electrical, hydraulic, information and communication. The product provides the best solution for the construction enterprises intending to improve the paving quality and operation efficiency, save the original material and energy consumption, and push the group intelligent combined operation mode.
Excellent Paving Quality
Advanced Control Technology
1. The
intelligent control system of independent innovation and CAN-BUS technology,
operation status and parameter adjustment of accurate control traveling,
feeding, separating, vibrating and leveling systems. Among the systems, the
information and data could be delivered and exchanged, thus control the systems
of the machine accurately and efficiently, improving the flatness of the
paver;
2. The intelligent integration control technology features the
excellent controlling precision and control; it adopts the advanced GSM/GPRS and
GPS communication and location technology, providing the paving management
function, remote monitoring, fault diagnose and intelligent service;
3. The
optimized the proportional control ranges of the spiral separation ultrasonic
detector improves the continuity and reliability of the spiral separation, and
reduces the aggregate segregation of the paving to the lowest;
4. According
to the requirement of the customer, it is equipped with automatic edging,
automatic steering and video monitor with the advanced technology in the world.
Highly Accurate Leveling Technology
1. It adopts CAN Bus
intelligent automatic leveling control system. Multiple-detector ultrasonic
non-contact balance beam is equipped with six height sensors. The system
measures with 36 detectors;
2. On the premise of paving accuracy and
leveling, the new multiple-detector ultrasonic controller could control the
paving depth automatically.
Excellent Paving Performance
1. The mechanical assembly and
hydraulic telescopic screeds both feature dual-vibrating, eccentric vibration
and heating functions. The basic width of mechanical assembly screed is 2.5m,
and the max. paving width is 12m for the standard configuration, and the max.
paving width is 14m for the optional configuration; the hydraulic telescopic
screed features 3m-6m stepless flexibility, and the max. paving width is 9m;
2. It adopts the patented technology of compactness automatic control to
reach the optimized matching of vibrating speed and travel speed, improving the
uniformity and leveling of the paving;
3. The vibrating, frame and rod
structure feature high rigidity and excellent stability, improving the paving
leveling degree.
Efficient Operation
Strong Power
1. It adopts Deutz
TCD2013L062V of 182KW electric engine, featuring large reserve capacity and
meeting the conditions of large load;
2. The engine adopts common rail
high-pressure fuel injection system, which could control the fuel ejection time
and ejection amount to improve the fuel efficiency and heavy load resistance
ability;
Large capacity hopper
1. 14-ton new hopper with the productivity
of 900-ton/hour, and it could meet the requirement even in the rapid paving
site;
2. The long hopper of 2.25m could join with various vehicles on the
construction site, providing the paving material smoothly.
Strong Feeding Capacity
The right and left material feeding and
separation adopt 4 sets of full hydraulic drive, Φ420/360 large diameter spiral
blade, large feeding capacity. The feeding capacity of the machine could reach
1000-ton/hour, and could ensure constant feeding even under the requirement of
paving depth of 350mm and large paving width.
High Operation Efficiency
The operation system delivers large
power, strong carrying capacity and great feeding capacity, and meets the
requirement of paving depth of 350mm.
High quality and high reliability
Excellent Quality
1. The technical innovation is leading in
China, and it adopts CAD, CAPP, CAM, PRO/E systems. With the leading testing
equipments and advanced ERP/PLM product period management, the product design
and R&D are top in China.
2. Introduce the international advanced
manufacturing technology, and establish the leading product manufacturing
system, and own multiple 5-shaft combined processing centers to provide the
reliable guarantee for the product quality.
3. During the product
manufacturing, each process must be measured and tested to guarantee the
quality.
Precise Configuration
1. It adopts the reliable and advanced
imported Deutz TCD2013L062V electric engine, featuring low noise and emission;
2. The main system adopts the Linde variable plunger pump and closed system
imported from Germany, featuring strong carrying capacity, and high drive
efficiency;
3. The integrated traveling drive device consisting of drive
motor, planetary reducer and brake features large ground area and strong drive
torque and reliable performance.
Convenient Service And Maintenance
1. The adjustable control
panel is displayed with the super LCD and operated with touch buttons. The
function buttons are distributed logically, which are easy to distinguish and
operate, featuring excellent human-machine interface;
2. Multiple direction
adjustable and comfortable seat features rigid cabin, smooth type hood with
noise reduction and isolation design, ergonomic ladder and handrail, providing
comfortable driving environment for the operator;
3. The innovated automatic
integrated lubrication device could lubricate the bearings on all positions in
high temperature automatically;
4. The power unit provides the power.
Operate the buttons slightly, and the seat will move rapidly;
5. The lines
are distributed clearly and orderly in the electrical system. All electrical
circuit and components are labeled with No. and symbol, which are easy to
distinguish, check and repair;
6. The openable diesel hood and left and
right hoods, integrated valve block, and monitoring points are easy to access
and convenient for service and maintenance.
| Items | Unit | Parameters | |
| DV25Q-I | E600DV | ||
| Paving width | m | 2.5 ~ 12 (Option: 14m) | 3 ~ 9 |
| Max. paving thickness | mm | 350 | 350 |
| Paving speed | m/min | 0 ~ 18 | 0 ~ 18 |
| Travel speed | km/h | 0 ~3.6 | 0 ~ 3.6 |
| Hopper capacity | t | 14 | 14 |
| Centre crown ratio | % | -1 ~ 4 | -1 ~ 3 |
| Double vibrator speed | r/min | 0 ~ 1470 | 0 ~ 1470 |
| Vibration frequency | Hz | 0 ~ 42 | 0 ~ 50 |
| Engine | TCD2013L062V Deutz | TCD2013L062V Deutz | |
| Rated power/speed | kW | 182 | 182 |
| Compactness | % | ≥90 | ≥90 |
| Evenness | mm/3m | ≤2 | ≤2 |
| Theoretical productivity | t/h | 800 | 700 |
| Dimension | mm | 6402×2656×3880 | 6980×3000×3880 |
| Machine weight | t | 22.2 ~ 31.2 | 24 ~ 26.5 |
| Paver | RP1356 | ||
| Screed Model | DV25Q-I | E600DV | |
| Type | / | Double vibrator, eccentric vibration, gas heating | Double vibrator, eccentric vibration,electrical heating |
| Extension type | / | Mechanical assembly | Hydraulic extension |
| Width | m | 2.5 ~ 12 (Option: 14m) | 3 ~ 9 |
| Vibrating speed | r/min | 0 ~ 1470 | 0 ~ 1470 |
| Main amplitude of vibrator | mm | 3, 5, 7, 9 | 5 |
| Auxiliary amplitude of vibrator | mm | 0, 3, 6, 9, 12 | 0, 5, 10 |
| Vibration frequency | Hz | 0~42 | 0~50 |
| Extra-long screed | mm | 1500×4, 1000×2, 500×2, 250×2 | 750×4 |
