Description

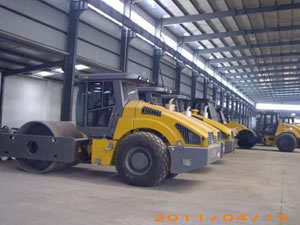

LTD618H full hydraulic vibratory roller and LTS618H hydraulic rear wheel drive vibratory roller can be used to compact non-cohesive materials such as graves, macadam, macadam-aggregate mixtures and sandy soil.
Additionally, this full hydraulic vibratory roller has a good compaction effect in cohesive materials. The road roller is ideal machinery for foundation compaction in the construction of expressway, mining road, embankment, sea port and industrial sites.
The full hydraulic single drum vibratory roller adopts international advanced technology and imported components. This machine is a super heavy-duty vibratory roller, possessing a great working mass and strong centrifugal force. LTD618H full hydraulic vibratory roller and LTS618H hydraulic rear wheel drive vibratory roller are the best compaction equipment in the large-scale mechanized construction.
Main Features of Vibratory Roller
1. The full hydraulic vibratory roller is equipped with CUMMINS B-series extra-pressure diesel engine with huge power reservation coefficient. This road roller is suitable for the operating condition above 4000 meters altitude.
2. LTD618H full hydraulic vibratory roller and LTS618H hydraulic rear wheel drive vibratory roller adopt changeable frequency and amplitude, articulated steering and advanced second stepless speed change.
3. The full hydraulic single drum vibratory roller employs break-off system, safe and reliable
4. Streamline outline, circular windshield glass and curvy hood form a unique style
5. LTD618H full hydraulic vibratory roller can be equipped with padfoot or removal padfoot as option.
6. The hydraulic pump and vibrating motor adopt 90 series made by American manufacturer SAUER or German REXROTH
Parameters of Full Hydraulic Vibratory Roller
| LTS618H | LTD618H | ||
| Operating mass | Kg | 18000 | 18000 |
| Static linear load | N/cm | 390 | 540 |
| Vibration amplitude | mm | 1.9/0.95 | 1.9/0.95 |
| Vibration frequency | Hz | 28/35 | 28/35 |
| Centrifugal force | kN | 375/270 | 390/280 |
| Travel speed | km/h | 11 | 11 |
| Grade ability | % | 30 | 35 |
| Turning radius | mm | 7500 | 7500 |
| Overall dimension | mm | 6410X2350X3090 | 6410X2350X3090 |
| Vibration round width | mm | 2100 | 2100 |
| Wheel base | mm | 3380 | 3380 |
| Ground clearance | mm | 472 | 472 |
| Diesel model | kW | 132 | 132 |
| Diesel power | CUMMINS 6BTA5.9 | CUMMINS 6BTA5.9 |
Attention
1. Delivery Time: 30 days after receiving down payment
2. Guarantee Time: one year or 1500 working hours which comes first after the date of B/L
3. Payment Terms: By TT--30% should be paid after singing contract, and 70% should be paid before LTD618H full hydraulic vibratory roller and LTS618H hydraulic rear wheel drive vibratory roller dispatching from the factory
Our vibratory roller, bulldozer, wheel loader, dump truck, concrete truck mixer, concrete pump truck and forklift trucks are popular in Angola, Peru, Congo, Bolivia, Tunis, Tanzania, and Democratic Republic of the Congo. We provide various road rollers such as single drum rollers, tandem rollers, double drum road roller, full hydraulic vibratory roller, tyre rollers, static rollers and walk behind rollers to meet your construction project. If you need LTD618H full hydraulic vibratory roller, please contact us.
