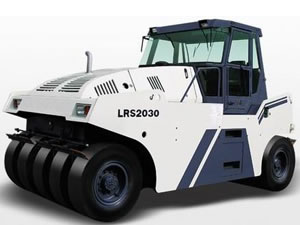

Description:
This series is smooth tyre roller, mainly suitable for pavement engineering of viscosity and the viscous materials, such as sand, gravel, stabilized soil, asphalt concrete, harsh concrete material compaction, especially suitable for the high grade highway asphalt layer of the final processing, is the construction of high-grade highway, airport, municipal engineering and industrial site high-performance compacting equipment.
Features:
1. Cummins B series water-cooled diesel engine, the power is strong, advanced performance,
2. With shifting synchronizer gear box or power shifting hydraulic transmission, advanced performance, convenient operation;
3. Power sprinkler system completely using antirust materials, large capacity glass reinforced plastic water tank, extend the operation time.
4. With infrared night vision function operation monitoring system, the operation is very convenient;
5. The machine has compact structure, low center of gravity design, modelling beautiful;
6. Capacious and closed bridge, with ventilation and air conditioning equipment (select configuration), the operation is comfortable.
Parameter:
| Type | LRS2030 | LRS1626 | LRS1626-2 | LRS1016 | |
| Max. Operating mass | kg | 30000 | 26000 | 26000 | 16000 |
| Min. operating mass | kg | 20000 | 16000 | 16000 | 10000 |
| Max. travel speed | km/h | 20.5 | 20.5 | 20 | 14 |
| Tyre Amount | 5+6 | 5+6 | 5+6 | 4+5 | |
| Tire contact pressure | kPa | 307~460 | 250-420 | 250-420 | 150~300 |
| Min turning Radius | mm | 8000 | 7710 | 7710 | 7500 |
| Rolling width | mm | 2755 | 2755 | 2755 | 2255 |
| Rolling width | mm | 50 | 50 | 50 | 40 |
| Gradeability | % | 20 | 20 | 20 | 20 |
| Diesel model | Cummins6BTA5.9 | Cummins6BT5.9 | Cummins6BT5.9 | Cummins4BT3.9 | |
| Diesel power | kW | 125 | 110 | 110 | 75 |
| Diesel speed | r/min. | 2300 | 2300 | 2300 | 2400 |
| Overall dimensions(with cabin) | mm | 4874×2755×3103 | 4874×2755×3103 | 4874×2755×3103 | 4770×2255×3100 |
| Overall dimensions(with canopy) | mm | 4770×2255×3192 |
