Lower height of only 1590 mm
optimized dust-proof and temperature-controlled system
compact, maneuverable, and auto-leveling

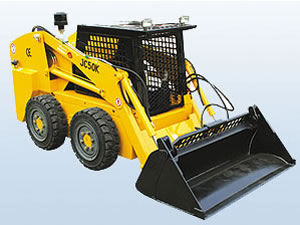

JC50K skid steer loader (ce, epa and gost)
Lower height of only 159 mm
optimized dust-proof and temperature-controlled system
Compact, maneuverable, and auto-leveling
| Specifications | |
| Rated Operating Capacity | 750 kg |
| Tipping load(Kg) | 1500 |
| Bucket Capacity(m3) | 0.4~0.5 |
| Hydraulic Pump Flow(L/min) | 75 |
| Engine power(HP) | 50 |
| Weight(Kg) | 2,8000 |
| Max. Travel Speed (km/h) | 8 km/hr |
| Grade ability(°) | 20° |
| Tire | 10.00/15 |
| Fuel/hyd. oil capacity(L) | 75/75L |
| Overall dimensions (mm) | 3600×1700×1590 |
| Dimensions | |
| A. Height at Maximum Extension | 2770 mm |
| B. Hinge Pin Height | 2210 mm |
| F. Width with Bucket | 1700 mm |
| G. Track Width | 1450 mm |
| H. Wheelbase | 991 mm |
| I. Ground Clearance | 200 mm |
| J. Dumping Angle | 40° |
| K. Dumping Height | 1500 mm |
| L. Rollback at ground | 26° |
| M. Angle of Departure | 20° |
Engine
| Maker | XINCHAI 490BPG | Net Power | 50 hp @ 2650 rpm | |
| Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel Engine | Displacement | 2.54L | |
| Standard | Optional | |||
| 1. Open-type Operator Cab | 1. Enclosed Operator Cab with A/C | |||
| 2. Hydraulic Joystick Controls | 2. Solid tires | |||
| 3. Standard Bucket | 3. Attachments: Backhoe, Breaker, Angle Blade, Auger, Sweeper, Pallet Fork, Combination Bucket, Mower, Asphalt Cutter, and More. |
|||
| 4. Auxiliary Hydraulic Couplers | ||||
| 5. Hydraulic Auto-leveling | ||||
