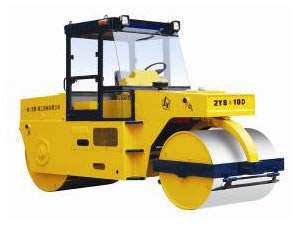

Static Roller

Description:
The static roller is widely used in compaction of various materials such as gravel, crushed stone, sand-macadam mixture, sandy soil, stabilized soils and bituminous concrete etc. Typical areas of applications are roads building, industrial yards construction and sites development. The engineering machine, static roller, works with high efficiency and reliability for good gear shifting, mechanical drive variable ballast and hydraulic steering, high-quality water tank.
Features of Static Roller:
1. Hydraulic braking system.
2. Good capacity of stitching hems.
3. Narrow nose with an excellent turning sight.
4. Equipped with sprinkling system.

2Y6X8B(D) /2Y8X10B(D) Static Road Roller

Model Description
2Y6x8B/2Y8x10B
(2Y6x8D/2Y8x10D:CUMMINS ENGINE)
The static road roller is equipped with Shangshai NewHolland powerful water cooled turbocharged diesel engine (made in China). 2Y6X8B(D)  2Y8X10B(D) static road rollers flatten and compact surfaces of the roads including hornblende, broken stone, asphalt and concrete ones. Static road roller can be also used for compacting bases of roads, highway, railway etc The CUMMINS engine can be equipped as option. The roller is also installed with mechanical travel drive, transmissions, two seats and dual steering wheels.

Basic Specification

Model 2y6x8B(D)   2y8x10B(D)
Weight of the static roller
Without Ballast 6000kg        8000kg
With Ballast 8000kg        10000kg
Front Axle Load 2900kg        3800kg
Rear Axle Load 5100kg        6200kg
Overall Dimensions
L*W*H 4500x1580x2660
Ground Clearance 320mm        320mm
Wheel Base 3150mm
Transmission for static road roller
Traveling Speed (1) 0-2.0km/h
Traveling Speed (2)
Climbing Capacity
0-4.0 km/h
20 %
Machine specification
Steering Angle 35 °
Min. Steering Radius 5230 mm
Fuel Tank Capacity 100 L
Engine of the static roller
Diesel Engine Model 495AY (4BT3.9)
Rated Power 36.75Kw (60KW)
Rated Rotation Speed 2000 r/min
Hydraulic Tank Capacity 50L

Feature of the machine
The pilot drum of the static road roller is frame type with low center of gravity and good stability. Compact construction and small turning radius with easy control  Low noise.

Additional Advantages of the static roller:
1. View from cab of drum edges. View of the whole area of front and partial area of rear drum.
2. The hydraulic steering system equipped with the static road roller assures easy manipulation.
3. Service brake, hydrostatic, parking brake: Mechanical..
4. Pressurized water sprinkler system on both front and rear drums with water spray switch and corrosion-free water tank.
5. Aadjustable seats with safety belt
6. Wheel scrapers and electrical lighting arrangements on front &rear.
7. Speed control lacer with neutral start switch, secondary/parking brake switch, engine start/run/stop switch.
8. Basic 6-8/8-10ton Static road roller PICS
