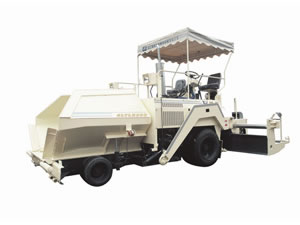

2LTLZ60 Asphalt Paver

Tires Paver

2LTLZ60 asphalt paver is used to pave asphalt for highway, urban road, plaza, and parking lots etc. It is the ideal machine for road construction.
The machine is mechanical - hydraulic driving and is equipped with hydraulically extension screed and automatic leveling unit. 2LTLZ60 asphalt paver can pave the road with good leveling and high density. The vulnerable parts use advanced wearable material to secure the performance.


Model: 2LTLZ60
Type: Tyre
Parameter

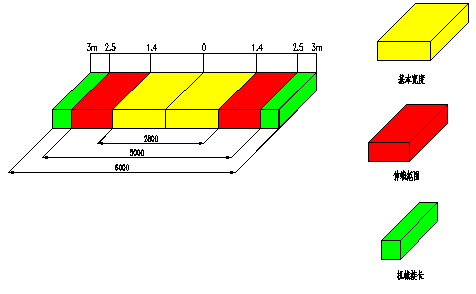

Basic Paving Width (mm): 2800
Max extend width (mm): 5000
Max paving width (mm): 6000
Paving Thickness (mm): 10-250
Paving Speed (m/min): 3.07~9.16
Traveling Speed (km/h): 2.30~16.84
Engine Power (kW): 86
Hopper Capacity (t ): 12
Max. Theoretical output (t/h): 300
Max climbabiltiy: 20%
Weight (kg): 12000~14000

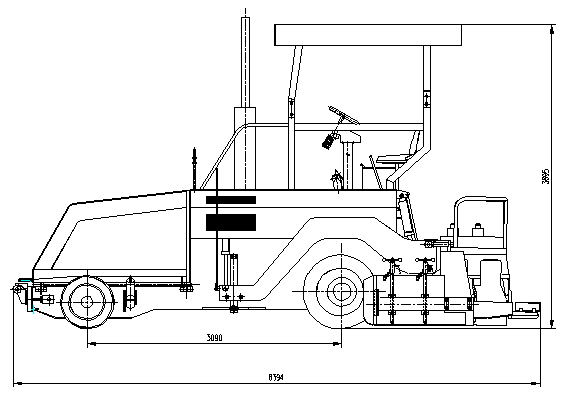

Overall Size: 6394×3000×3695 (operation) 6064×2733×2888 (transportation)
Engine : F6L913T six cylinders, air cooled engine 86Kw/2300r/min
Diesel tank (L):200
Drive System
The machine is driven mechanically-hydraulically. Flywheel end of engine is connected with transfer case. The front of engine is connected with split flow pumps to supply power to the components as follows:
1. Crawler traveling devices
2. Conveyor and screw feeder
3. Vibrating device
4. Hopper folded in & out, screed up & down and other cylinders action

Traveling Device
It is consisted of gear box, transfer case, traveling clutch and chain transmission.
The driven chain wheel activates the crawler.

Weight Bearing Mode
There are six tyres. Front tyre are Solid, rear tyre are pneumatic tyre.

Steering
The traveling clutch is operated by hydraulic cylinder. The brake can make the machine turn at former place.

Hopper
The capacity is 12 tons and operated by hydraulic cylinder for entire discharge.

Push Roller
The roller can swing to push the truck rear wheels.

Conveyor
Left and right conveyor is independently driven. Hydraulic cylinder controls the conveyor clutch and also controls the chain transmission to run the feeder.

Electrical System
The system is equipped with two batteries. The voltage is 24V.

Canopy
It is consisted of steel tube and cloth.
Automatic Leveling Sensors
It has two grades and one slope leveling units, used for automatic adjustment of slope and grade.
Working Devices
Hydraulic extension screed
1. Screed      basic width                               2800mm
Crown adjustment                          0—4%
2. Vibration    frequency                                50 Hz

Main Performance
1. 86kW air cooled engine made in China with DEUTZ technology to offer powerful and reliable capacity, good start performance at low temperature.

2. Independent left & right conveyor and screw feeder
Independent operation for L/R conveyor and screw feeder, easy operation. Screw feeder is pieced mechanically. Screw feeder blade is made of wearable material, convenient replacement to ensure screw life.

3. Auto Leveling Units to offer Reliability for Road Smoothness
The machine is equipped with two grade and one slope automatic leveling unit, grade smoothness 3mm/3m and slpe smoothness 2/1000, which reaches the demand of high-grade road smoothness. It controls in time, convenient and intuitionistic. It can prevent the asphalt from valid filling to reduce construction cost.

4. Extendable Screed, electric hydraulic control Stepless extension, reduce assemble time, with auto ignition device. .

5. Screed bottom plate use wearable material

6. Centralize lubrication system lubricated high-temp and moving parts automatically.

7. Fuel electric clean system makes cleaning easier, reduce working force.

8. Advanced electrical technology, all the control elements and wires are numbered according to the electrical drawings for easy fault check.

9. Wide Eyeshot and Removable Operation Platform
All the control elements centralize on operation platform for easy operation. Operation platform can be moved right and left that can reduce job of operator and improve efficiency to guarantee pavement quality.

Appendix
2LTLZ60 asphalt paver's key parts

  1. DEUTZ engine with air cooling
  2. Hydraulic pump use Germany
  3. Vibrating motor use from Tianjing hydraulic mechanical factory
  4. Transfer case uses domestic brand from the second motorcar company
  5. Control valves use domestic brand from Beijing HUADE
  6. Automatic leveling device uses domestic brand
  7. change valve use Italy Atos
  8. Centralized lubrication use zhejiang HUABEIER.

Note: All the technical specifications mentioned above will maybe change as the technology development. Please refer to the final offer.
