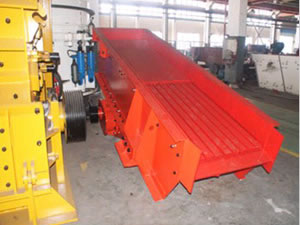

Vibrating Feeder

The apron feeder remains the preferred design throughout the world.

With over 26 years of combined experience in the application, engineering and manufacturing of heavy-duty apron feeders, MITG is truly the worldwide used in the manufacturer of this vibrating feeder equipment in the stone crushing production line.

SWB Medium-sized apron feeder is a kind of bilk material feeding equipment. This vibrating feeder, or apron feeder, changes the intermittent feeding into a continuous feeding. Our company's introduced of foreign advanced technology and developed SWB plate feeding machine. Low leakage is expected to run smooth, long life, easy maintenance advantages.

Heavy Duty apron feeder is mounted under silo, agglomerate rock unloaded by it is going to be equable fed to crusher. It is widely used in the cement, construction material, and metallurgy and mining industry.

Main Technical Parameters of BQ Series Light Plate-type Vibrating Feeder

Model	Chain plate width(mm)	Chain center distance (mm)	Capacity (m³/h)	Feeding Speed (m/s)	Max Size of materials (mm)	Motor Power (kw0	Weight(kg)
BQ500-2	500 apron feeder	2000	7-88	0.05-0.4	180	1.1-3	2500
BQ500-3		3000					3000
BQ500-4.5		4500					3500
BQ500-6		6000					4000
BQ500-9		9000				1.5-4	4800
BQ500-12		12000					5600
BQ500-15		15000					6400
BQ630-3	630 vibrating feeder	3000	11-175	0.04-0.4	200	1.5-4	3200
BQ630-4.5		4500					4000
BQ630-6		6000					4700
BQ630-9		9000					6000
BQ630-12		12000				2.2-5.5	7500
BQ630-15		15000					9000
BQ800-3	800 apron feeder	3000	19-308	0.04-0.4	350	2.2-5.5	3600
BQ800-4.5		4500					4400
BQ800-6		6000				2.2-5.5	5200
BQ800-9		9000					6800
BQ800-12		12000					8200
BQ800-15		15000					9600
BQ800-18		18000					11000
BQ1000-3	1000 vibrating feeder	3000	25-507	0.03-0.4	450	3-7.5	5000
BQ1000-4.5		4500					6000
BQ1000-6		6000				3-13	7000
BQ1000-9		9000					9000
BQ1000-12		12000				4-15	11000
BQ1000-15		15000					13000
BQ1000-18		18000					15000
BQ1250-3	1250 apron feeder	3000	40-845	0.03-0.4	600	4-15	6500
BQ1250-4.5		4500					7300
BQ1250-6		6000				4-18.5	8400
BQ1250-9		9000					10500
BQ1250-12		12000				5.5-22	12600
BQ1250-15		15000					14800
BQ1250-18		18000					17000

Main Technical Parameters of BQ Series Light Plate-type Feeder

Model	Slot board width(mm)	Head and tail wheel center distance (mm)	Speed (m/s)	Feed Size (mm)	Capacity (t/h)	Power (kw)	Overall dimensions (L x W x H) (mm)	Weight (kg)
WBL 100-6	1000	6000	0.01-0.1	≤500	80-160	11	8620x4960x1600	15560
WBL 100-12	1000	12000	0.05-0.1	≤500	60-130	15	1350x4215x1675	23525
WBL 120-4	1200	4000	0.014-0.08	≤600	45-150	11	5810x5160x1480	12660
WBL120-6	1200	6000	0.01-0.1	≤600	80-160	11	8620x5160x1600	15660
WBL 120-11	1200	11000	0.01-0.1	≤600	50-100	15	11463x5029x2860	23535
WBL 120-19	1200	19000	0.014-0.09	≤600	45-150	22	21620x5460x2000	41058
WBL 125-4.5	1200	4500	0.054		150	15	7183x3616x2071	30500
WBL 125-6	1250	6000	0.014-0.08		45-150	11	8610x5240x1950	18930
WBL 125-12	1250	12000	0.014-0.08		45-150	18.5	14600x5460x2000	31898
WBL 140-8	1400	8000	0.017-0.17	≤900	100-200	22	10350x5948x1840	29298
WBL 140-16	1400	16000	0.006-0.06	≤900	20-200	22	18310x6447x2030	45999
WBL 140-18.03	1400	18030	0.006-0.06	≤900	20-200	22	20380x6440x2030	50980
WBL 150-5	1500	5000	0.014-0.08	≤700	85-288	15	7620x5440x1950	18718
WBL 150-10.5	1500	10500	0.006-0.06	≤700	20-200	22	12580x5595x1705	49415
WBL 150-15	1500	15000	0.006-0.06	≤700	20-200	22	17350x5595x1705	58800
WBL 160-6	1600	6000	0.017-0.17	≤800	61-610	22	8354x6099x2100	25032
WBL 160-9	1600	9000	0.076	≤800	180	22	11250x5716x2240	34763
WBL 180-8	1800	8000	0.022-0.046	≤800	100-1000	37	10300x4295x3650	53025
WBL 180-12	1800	12000	0.05	≤800	360	45	14723x6697x2080	67806
WBL 220-10	2200	10000	0.018-0.055	≤1500	220-680	45	12650x4495x3350	80400
WBL 240-10	2400	10000	0.018-0.055	≤1500	220-680	45	12650x4695x3350	83400

Main Technical Parameters of WBZ Heavy Plate-type Feeder

Model of our vibrating feeder	Slot board width(mm)	Head and tail wheel center distance of apron feeder (mm)	Speed (m/s)	Feed Size (mm)	Capacity (t/h)	Power (kw)	Overall dimensions (L x W x H) (mm)	Weight (kg)
WBZ160-9	1600	9000	0.01-0.07		27-270	30	11250x4153x2890	50000
WBZ180-8	1600	8000	0.01-0.07	≤1000	≤500	37	10250x4153x2890	59000
WBZ180-8.75	1800	8750	0.04-0.07	≤1000	≤500	37	11050x4553x2890	61000
WBZ180-9	1800	9000	0.01-0.07	≤1000	≤500	37	11250x4553x2890	63000
WBZ180-9.8	1800	9800	0.01-0.07	≤1000	≤500	37	12000x4553x2890	63000
WBZ180-10	1800	10000	0.01-0.07	≤1000	≤500	37	12200x4553x2890	66000
WBZ200-9.8	2000	9800	0.01-0.07	≤1000	≤500	37	12000x4553x2890	82000
WBZ220-10	1800	10000	0.01-0.07	≤1200	≤700	45	12000x4753x2890	85000
WBZ230-10	2300	10000	0.01-0.07	≤1500	≤800	45	12000x4853x2890	86000
WBZ240-10	2400	10000	0.02-0.06	≤1600	≤850	2x37	12000x4953x2890	95000
WBZ250-11.5	2500	11460	0.01-0.07	≤1800	550-900	2x45	12000x5053x2890	105000

Note: This table does not include the weight of the motor.
