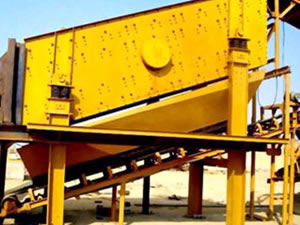

Grizzly Screen

A Wide range of Vibrating Grizzly Screen Feeders are available to suit almost any scalping operation particularly for handling.
For Sizing, grading and separation of various raw materials.

1. Capacities up to 1500 tonnes per hour.
2. Handling single particle lumps up to 2.5 m edge length
3. To withstand high impact loads when installed directly under dump hopper.
4. Sizes up to 3.5 m wide and 8.5 long - larger sizes available on request.

Typical applications
Include crusher relief operations handling ROM Limestone in Cement Plants, Iron Ore crushing operations, ROM Coal in Coal handling plants, other Mining and Quarrying applications. Another major area of application is for screening out trash and tramp material Such as high capacity screening of moist Coal in Power Plants without material blockage.

Increasing use in Road Building and Civil Construction Projects for screening of Basalt Rock, various types of stones and gravel.

Design and Operation
Vibrating Grizzly Screen Feeders are fully floating, linear motion units supported on compression springs, and are driven by highly reliable Direct Force Exciters, through drive motor and cardan shaft coupling. Depending on design, certain models are driven by a pair of unbalance motor exciters.

Deep side plates, connected by huck bolted cross beams, ensure high rigidity. Wear surface is provided with abrasion resistant liners.

Upon request, a separate isolation frame can be provided, for mounting the Grizzly unit, which is also spring floated and fitted with hydraulic shock absorbers to facilitate smooth start / stop without excessive resonance vibrations.

Correct adjustment of the Direct force Exciters provides optimum combination of amplitude and speed to suit each application requirement.

Oil bath lubrication ensures trouble-free operation even in hot and dusty atmosphere.

Dc electrical brake systems are offered as option to prevent occurrence of resonance vibrations during stopping operation of the unit.

Electronic Vibration Monitoring System can also be offered for on-line condition monitoring of a Grizzly unit in actual operation.

  Model  Screen decks Power
(KW)
 Dimensions
    (mm)
weight
(t)
Screen size(mm)  Capacity
(t/h)
BS1020 1 2.2×2 3000×1620×2019 2.3 1000×2000 10-200
2BS1020 2 2.2×2 2000×1620×1817 2.5 1000×2000 10-200
BS1030 1 2.2×2 3000×1620×2019 3.3 1000×3000 15-250
2BS1030 2 2.2×2 3000×1620×2181 3.6 1000×3000 15-250
BS1530 1 3.7×2 3000×2120×2019 5.1 1500×3000 20-350
2 BS1530 2 3.7×2 3000×2120×2181 5.5 1500×3000 20-350
BS1540 1 3.7×2 4000×2120×2422 6.8 1500×4000 25-400
2BS1540 2 3.7×2 4000×2120×2581 7.3 1500×4000 25-400
BS1550 1 5.5×2 5000×2120×2465 8.45 1500×5000 30-500
2BS1550 2 5.5×2 5000×2120×2890 9.1 1500×5000 30-500
BS2050 1 5.5×2 5000×2620×2465 11.1 2000×5000 50-500
2BS2050 2 5.5×2 5000×2626×2890 12 2000×5000  50-500
BS2060 1 7.5×2 6000×2620×2610 13.8 2000×6000 60-600
2BS2060 2 7.5×2 6000×2620×2920 14.9 2000×6000 60-600
BS2070 1 7.5×2 7000×2620×2968 17.5 2000×7000 65-700
2BS2070 2 7.5×2 7000×2620×3050 19.8 2000×7000 65-700
BS2080 1 7.5×2 8000×2620×3493 21.82 2000×8000 80-800
2BS2080 2 7.5×2 8000×2620×3125 23.4 2000×8000 80-800
