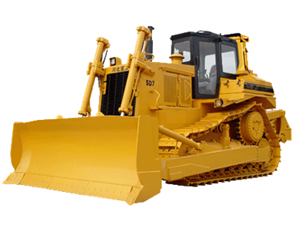

SD7 Bulldozer

SD7 Bulldozer

Description:
The bulldozer, also called dozer, is a piece of earthmoving equipment widely used in the construction site. There is a front-mounted dozer blade used to push solid forward to make formed land. The bulldozer is widely used for road construction, water and electricity engineering, farmland leveling, port building, mining and other construction conditions. We can offer all kind of bulldozer from 80HP to 420HP by introducing Komatsu and Caterpillar technology.
The main subassembly of a bulldozer includes: tracked chassis, protective driver cage, rear-mounted ripper claw and a variety of front-mounted blades. Bulldozer blade and the ripper are the primary tools of bulldozers or dozers. There are straight blade (S-blade), universal blade (U-blade), U combination blade that can be used in the dozer to push piles of large rocks. The ripper is equipped with a replaceable tungsten steel alloy tip that can be installed on the back of the bulldozer (dozer). It can let the large rocks broken into small rubble for easy handling and transport

Model SD7
Operation weight 23800kg
Ripper weight  3900kg
Ground clearance 404 mm
Ground contact length 2890 mm
Track center distance  1980 mm
Gradient longitudinal 30  °, transverse 25 °
Ground pressure(without ripper) 71.9 kPa
Engine NT855-C280 (Cummins)
Rated power 162kw
Travel speed Forward3/Revers 3
Blade width 3762mm
Blade Height 1140mm
Overall dimension (L x W x H) (without ripper) 7604 × 3823 × 3402
