SD8 Bulldozer

SD8 Bulldozer

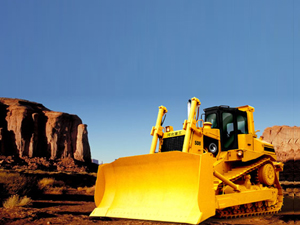

SD8 Bulldozer is elevated sprocket, track-type bulldozer. Its undercarriage system is elastic suspended, elevated sprocket, hydraulic direct drive, and hydraulic controls. SD8 dozer can be equipped with S-blade, single shank ripper. Main structure uses high strength plate and is suitable for working in stony, worse earth condition. The cab is installed Rops device and comfortable seat.

Main specifications
Operating weight(not including ripper) 40000kg
Ripper weight     4300kg
Engine flywheel power  246 kw(335HP)
Ground pressure(without ripper) 71.9kPa
Ground clearance 485mm
Ground contact length 3280 mm
Track center distance     2200mm
Overall dimensions(L×W×H) (with single shank ripper) 8090 × 4172 × 3952(with single shank ripper)
Grade ability Latitude30°   Transverse 25°
Theory travel speed    (km/h)
1st gear forward 0-3.9 1st  gear backward 0-4.8
2nd gear forward 0-6.8 2nd gear backward 0-8.4
3rd gear forward 0-11.9     3rd gear backward 0-14.8
Dozing operation rate(moving distance 40m)  452m 3 /h
Diesel Engine
Model NTA855-C400 (BC III )
Type    water cooled, single line, four strokes, turbocharged, 6-cylinders,
Rated speed  1900r/min
Flywheel power 246kw(335HP)
Start mode 24V electric starting
Hydraulic system(Implement)
Hydraulic flow rate 129L+56L/min
Hydraulic pressure 21MPa
Pump type Double vane pump
Control valve Hydraulic operated
Left and right undercarriage system
Maintenance filling capacity
Fuel tank   753L
Water tank of cooling system    125L
Camshaft box of the engine 47L
Bevel gear case    167L
Implement oil tank   89L
Pivot lubricating tank  13L
Final drive       23L
Power transmitting system
Torque converter used in SWD8 bulldozer is power separating hydraulic-mechanic type.

Description:
The bulldozer, also called dozer, is a piece of earthmoving equipment widely used in the construction site. There is a front-mounted dozer blade used to push solid forward to make formed land. The bulldozer is widely used for road construction, water and electricity engineering, farmland leveling, port building, mining and other construction conditions. We can offer all kind of bulldozer from 80HP to 420HP by introducing Komatsu and Caterpillar technology.
The main subassembly of a bulldozer includes: tracked chassis, protective driver cage, rear-mounted ripper claw and a variety of front-mounted blades. Bulldozer blade and the ripper are the primary tools of bulldozers or dozers. There are straight blade (S-blade), universal blade (U-blade), U combination blade that can be used in the dozer to push piles of large rocks. The ripper is equipped with a replaceable tungsten steel alloy tip that can be installed on the back of the bulldozer (dozer). It can let the large rocks broken into small rubble for easy handling and transport
