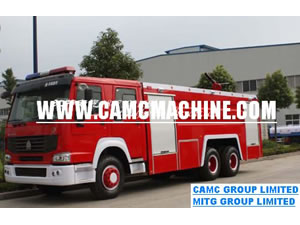

| Name | SINOTRUCK HOWO double-back axle foam fire truck |
| Category | Tank and foam dual-use |
| Tank Capacity | Water: 12000L Foam: 3000L |
| Classes of fire | Petroleum, chemicals, and normal fire |
| Tax exemption Announcement | The Twntieth batch (First series of 2010) Click Quiry on page 174 f |
| Motorcycle type |
| SINOTRUCK HOWO double-back axle foam fire truck is converted from SINOTRUCK HOWO ZZ1257M4647C. With compact structure, dynamic performance, high speed, the fire truck is fully fire fighting. Beside the fire pump and equippments, there are bigger storage tanks, hydraulic monitor and fire water monitor. The truck can be used to carry water and firefighters, uptake water from water source and provide for other fire trucks. In water-deficient areas, it can be also used as water-supply truck. It's necessary for petroleum, chemical, mines and ports areas. |
| Fire Equippments |
Specification:
| Model | JDF5280GXFPM120Z foam fire truck | Chassis model | ZZ1257M4647C | ||
| Weight Parameters (kg) | Rated Load Capacity | 15000 | Overall dimension | 10025×2500×3420 | |
| Complete vehicle kerb mass | 13100 | Cabinet size | |||
| Maximum total mass | 28550 | Wheel Base | 4325+1350,4600+1350 | ||
| Engine Parameter | Model | WD615.92 | Manufacturer | SINOTRUCK | |
| Power | 196/266 hp | Output volume | 9726 | ||
| Emission standard | GB17691-2005 phase Ⅲ,GB3847-2005 | ||||
| Passangers | 2+4 | Max. Speed | 90km/h | Number of Leaf Springs | 9/12,10/12,10/- |
| Tyre | 11.00-20,12.00-20 | Front overhang | 1500 | Rear overhang | 2490 |
| Axle load | 6900/20700(Tandem axle) | Front gauge | 1939,1958 | Rear Track | 1800/1800,1830/1830 |
| Others | The capacity of water tank is 15000kg, The fire man is 75kg/per person (hypothetical). Rear Protraction: 60mm; Lateral and rear-end protection materials: Q235, hemline-structure. Ground clearance of rear-end protection device: 540mm | ||||
Special Function
| Cab | Flattop metallic closed crew cab is connected with crew department. Four-door, full-view windshield. | ||||
| Tank | High-quality carbon steel, welded, vertical and horizonal SHIM, antiseptic treatment. | ||||
| Pump House | Midship or rear-mounted pump, around the poump and storage compartment, there is new-type, high strength alufer rolling door. | ||||
| Storage Compartment | Borrow advanced aluminium alloy sections inboard hingedtower technology from Europe wi th riveting structure. | ||||
| Electrical equipment | The top of the cab is long line alarm lamp. The end of the truck is euipped with 24V, 60W fireground floodlight. Ther are burst flashing lights on both sides, safety marker lamps at the bottom, Floodlights and 100W alarm device, rotary alarm lamp switch are avalible in crew department, storage compartment, pump room. | ||||
| Dedicated function | Water tank capacity (L) | 12000 | Concentrated tank tankcapacity(L) | 3000 | |
| Fire monitor | Type | PP48 dual-use fire monitor | Range | Water≥60m/1.0Mpa Foam≥55m/1.0Mpa |
|
| Fire pump(normal pressure pump) | Type | BS60 | Rated Flow | 60L/s | |
| Rated Pressure | 1.0MPa | Time of drawing water | ≤35s(7m suction height) | ||
| Fire pump(low-pressure pump) | Type | CB20.10/30.60 | Time of drawing water | ≤50s(7m suction height) | |
| Low pressure flow | 60L/s/1.0MPa | Medium-pressure flow | 30L/s/2.0Mpa | ||
Fire Equippments
| Fire Equippment |
No. | Name | Q'TY | Type |
| 1 | 135×4 msuction pipe assembly | 2 | ||
| 2 | 135 suction pipe wrench | 2 | ||
| 3 | 135 water filter | 1 | ||
| 4 | Triple head distributor (insertion-type) | 1 | ||
| 5 | 135 (insertion-type) water collectormanifold | 1 | ||
| 6 | Sraight stream nozzle | QZ19 | 1 | |
| 7 | Sraight flowering nozzle | QZH19 | 1 | |
| 8 | Sraight switch nozzle | QZG19 | 1 | |
| 10 | ∮65water hose (polyurethane, insertion-type coupling, 20m /set) 16type | 8cases | ||
| 11 | ∮80 water hose (polyurethane, insertion-type coupling, 20m /set) 16type | 4cases | ||
| 12 | Chafing block | 1 | ||
| 13 | Hose strap | 1 | ||
| 14 | Hose gaiter | 1 | ||
| 15 | Hermaphroditic coupling | KJ50/65 | 1 | |
| 16 | Hermaphroditic coupling | KJ65/80 | 1 | |
| 17 | 65 buckle/65 male coupling | KX65/65 | 1 | |
| 18 | 65 buckle /80 male coupling | KX65/80 | 1 | |
| 19 | 80 buckle /65 male coupling | KX80/65 | 1 | |
| 20 | 80 buckle /80 male coupling | KX80/80 | 1 | |
| 21 | Underground hydrant wrench | 1 | ||
| 22 | Underground hydrant wrench | 1 | ||
| 23 | Fire Bucket | |||
| 24 | Fire Lift | |||
| 25 | Fire borad axe | |||
| 26 | Fire axe | |||
| 27 | Crowbar | |||
| Technical Documents |
1 | Fire truck operating instruction | 1 | |
| 2 | Certification | 1 | ||
| 4 | Automobile chassis operating instruction | 1 | ||
| 6 | Fire pumps operating instruction | 1 | ||
| 7 | Quality warranty card | 1 |
