Rescue Fire Truck (Fire Emergency Ambulance)
This rescue fire truck is also known as fire emergency ambulance. There are all kinds of fire-fighting equipments, special protective equipment for firefighters, fire detectors and so on. It is responsible for the fire fighting work.
Typical:

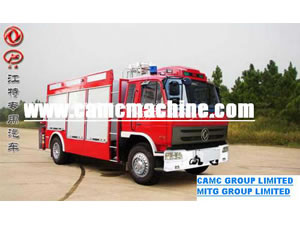

DONGFENG 153 water tank fire-fighting truck
| Product | Dongfeng 153 water tank fire-fighting truck | ||
| Chassis model | EQ1141G7DJ | ||
| Payload(kg) | 5950 | ||
| Engine model | EQB180-20 | ||
| Displacement/Power(ml/kw) | 5880/132 | ||
| Actual cubage(m3) | Water loading capacity 5.5T | ||
| Overall dimension(mm) | 7810×2500×3269 | ||
| Wheelbase(mm) | 4500 | ||
| Transmission | 6 gear mechanical transmission, double pole remote control | ||
| Steering gear | Power steering | ||
| Braking system | Spring braking | ||
| Clutch | Uniwafer dry clutch，Dia φ380MM | ||
| Front axle | End fist type, I-beam structure，5T | ||
| Rear axle | Ramming welding bridge shell,10T, the reduction ratio 6.5 | ||
| Frame description | Stamping riveting structure, the outer width of frame assembly 861MM | ||
| Max section area | 250×80×7mm | ||
| Cab | Non-longheaded cab，whole metal-enclosed，twisted bar type, turntable. three-seat with sleeper, adjustable driver seat | ||
| Air-condition | Non | ||
| Engine model | EQB180-20 | ||
| Type | Water-cooling, 6-in-line supercharged inner-cooling diesel engine | ||
| Max power(kW) | 132 | ||
| Displacement(ml) | 5880 | ||
| Max torque(N。m) | 610 | ||
| Cylinder diameter/Stroke(mm) | 102 /120 | ||
| Fuel type | diesel | ||
| Manufacturer | Dongfeng Commins Diesel Engine Co.,Ltd | ||
| Parameters above mentioned are referential, and our company reserves the right of product improving. | |||
