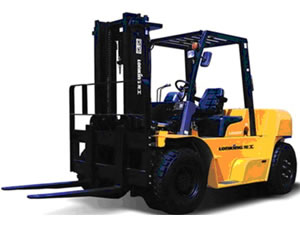

Diesel forklift LG50DT is equipped with wide view mast and most rational center gravity, the hydraulic system is very stable and reliable, and the large capacity radiator ensures better radiating effect. The wire harness and waterproof plug-in of the forklift is of the latest technology. Furthermore, the equipment is configured with new type transmission box and its transverse cylinder steering axle provides larger steering angle and lower turning radius.
Overall Data of diesel Forklift LG50DT
Parameter
| Model Number | LG50DT |
| Power Type | Diesel |
| Load capacity | 5000kg |
| Overall L×H×W | 4660×2500×2000mm |
| Battery Capacity | 81kw |
| Engine | CHAOCHAI CY6102BG |
| Optional | ISUZU 6BG1 |
| Load center(mm) | 500 |
| STD Max lifting height(mm) | 3000 |
| Free lift height(mm) | 170 |
| Fork size(mm) | 1070×150×50 |
| Mast tilt angle(deg) | 6/12 |
| Front overhang (mm) | 493 |
| Rear overhang (mm) | 530 |
| Min. turning radius (mm) | 3370 |
| Min. intersecting aisle(mm) | |
| Speed (load/unload) | |
| Max. Traveling speed (km/h) | 25/27 |
| Max. lifting speed (mm/s): | 450/350 |
| Max gradient (load/unload) (%): | 20 |
| Dead weight (kg) | 5000 |
| Tread (front/rear) (mm) | 1040/970 |
| Axle distance (mm) | 1900 |
| Min ground clearance | |
| Mast(mm) | 148 |
| Frame(mm) | 160 |
