Description:

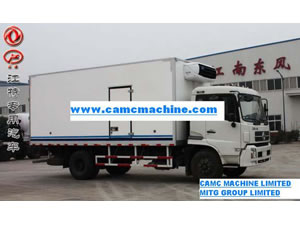

Dongfeng Tianjin van truck adopted DFL1160B chassis. It is modified from the common van truck. The wings on two sides can be opened by the spring, hand power device or hydraulic device. This van truck has double back doors. The structures of the top, front plate and back door of this Dongfeng Tianjin van truck are similar to the corrugated iron van truck.
Features:
1.This van truck has the features of fast loading and unloading speed, high efficiency, well sealing, etc.
2.It can resist the corrosion of rain, dust, sunshine.
3.The cargo can be discharged from the side.
4.Dongfeng Tianjin van truck is the ideal vehicle in modern logistics. It can save the time and cost.
| Item | Dongfeng Tianjin Van Truck |
| Application | Large and medium-sized logistics enterprises |
| Body volume | 53.8m3 |
| Vehicle production announcement | 188th, click here for inquiry |
Parameters of Van Truck
| Model | DFL5160XYKBX wing-open van truck | Chassis model | DFL1160B | ||
| Quality (kg) | Rated quality (kg) | 7900 | Overall dimension(mm) | 11000×2500×3880 | |
| Kerb weight (kg) | 8305 | Body dimension(mm) | 8600×2500×2500 | ||
| Total mass(kg) | 16400 | Axle distance | 1700+5100 | ||
| Engine parameter | Type | B190 33 | Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Power | 140/190 kw | Discharge | 5900 | ||
| Discharge standard | GB3847-2005,GB17691-2005, National Ⅲ | ||||
| Passenger number in cab | 3 | Max. speed(km/h) | 90km/h | Spring number | 10/10/10+8,10/10/11+8 |
| Tyre | 9.00-20,9.00R20,10.00-20,10.00R20 | Front overhang | 1430 | Rear overhang | 2770 |
| Axle load | 3200/3200/10000 | Front wheel base(mm) | 1913/1913 | Rear wheel base(mm) | 1860 |
Special Function of Dongfeng Tianjin Van Truck
| Cab | 6 × 2 drive, D530 cab, front width 860 mm, rear width 860 mm, electrical heating cold starting device, whole steel 160L fuel tank, Φ 350 mm push diaphragm spring clutch, Dongfeng DF6S750 gearbox with 6 grade, automatic adjustable arm, no ABS, electric glass lifts, central door lock, standard refrigeration and air conditioner, no cruise system, remote throttle interface and PtO interface. |
| Body structure | The body is rectangles square tube structure. The rim of body is made of aluminum. The outside is covered with aluminum corrugated plate, and the interior is galvanized flat. The wings on two sides can be opened and lifted by hydraulic pressure. The activities column board can be added to the body below. |
| Body materials | The inside of the body is the marine plywood, which can prevent the hit of the cargo. The outside of the truck body is covered with 1.2 mm high quality cold-rolled steel. The body appearance is more delicate and beautiful, generous. The inside of the body is coated with waterproof plywood. The surface is skinned fire-proof paint. The sides of body have ventilation window. |
| Paint | The body and other metal attachments is sprayed anti-corrosion paint. The paint is high adhesion, even paint film , light color lasting, etc. It can bear damp, dusty, salt fog and other bad environment. And it will not craze, peeling, fade. |
