Special Function:
1. The body material: carbon steel, stainless steel, glass reinforced plastics, PE, etc.
2. Tank shape: oval, circle, etc.
3. The oil pump: self-priming pumps, gear pump, chemical pump, and stainless steel pump.
4. Oil gauge: single count, double counting.
5. Function: this truck can store different products, such as oil, chemicals, food, etc.
6. It can be designed into chemical tanker car.
Model of Oil Tank Truck:
DFL1311A3, EQ1102FLJ6, EQ1110GLJ, BJ5163GLFFG-S, BJ5313VNCJJ-S, ZZ1316M4669V

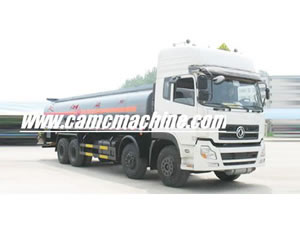

| Technical Parameters of Dongfeng Tianlong Oil Tank Truck | |||
| Item | Dongfeng Tianlong Oil Tank Truck | Overall dimension(mm) | 11800×2480×3100,3690 |
| Chassis model | DFL1253AX | Body dimension(mm) | ×× |
| Total mass(kg) | 25000 | Approach angle/departure angle(°) | 30/20 |
| Rated quality (kg) | 12500 | Front overhang/rear overhang (mm) | 1460/2780 |
| Kerb weight (kg) | 12305 | Max. speed(km/h) | 90 |
| Axle load | 7000/7000/11000 | ||
| Chassis Technical Parameters of Dongfeng Tianlong Oil Tank Truck | |||
| Chassis model | DFL1253AX | Batch | 215 |
| Axles number | 3 | Fuel type | Diesel |
| Axle distance(mm) | 1950+5350 | Front wheel base(mm) | 1980/1980 |
| Passenger number in cab | 3,2 | Back wheel base(mm) | 1860 |
| Tyre number | 8 | Spring number | 8/8/9+9,3/3/4+3,8/8/8+8,8/8/10+3,3/3/- |
| Tyre size | 295/80 R22.5,11.00-20,11.00R20 | ||
| Vehicle introduction | This truck can be used to transfer the gasoline with the density of 0.7t/m3.. the body volume is 18.75m3. its size is (mm)9000×2350×1300. | ||
| Engine Parameter of Dongfeng Tianlong Oil Tank Truck | |||
| Engine type | Engine manufacturer | Displacement(ml) | Power(kw) |
| ISDe210 30 ISDe245 30 C245 33 C23033 B210 33 |
Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. |
6700 6700 8300 8300 5900 |
155 180 180 170 155 |
