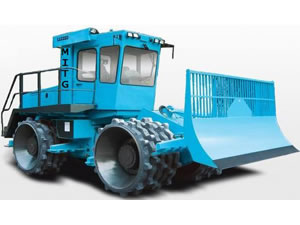

Description:
This trash compactor is landfill site the necessary equipment, have to squeeze garbage broken, compaction function, be helpful for saving land, protect the environment, prolong the service life of landfill.
Features:
1. Wood on technology import water booster diesel engine, can choose low temperature starting device;
2. Hydraulic torque converter and power shift gearbox, four-wheel walk drive;
3. Unique arrangement of long life wear-resisting tooth, set scraping mud development pliers, guarantee the tooth clean, prevent the foreign body wound;
4. Hydraulic system using the load sensing device of plunger pump, and operation, high efficiency and energy saving,
5. Centralized lubrication on a regular basis point lubricating maintenance, set spraying drug agency prevent mosquito sting interference;
6. Frame the integration of anti turn protection structure (ROPS), and bridge crane brake and central parking brake provides maximum security guarantees,
7. Bridge reversible, two side SanKaiMen hood, double side corridor and protective ladder, the main transmission element stretch one's hand can reach;
Parameters:
| Type | LLC228 | LLC226 | LLC223 | LLC220 | |
| Operating weight | kg | 28000 | 26000 | 23000 | 20000 |
| Operating weight | mm | 3430 | 3430 | 2910 | 2910 |
| Max. travel speed | km/h | 10.9 | 10.9 | 10 | 10 |
| Max gradeability | % | 100 | 100 | 100 | 100 |
| Push shovel height x width | mm | 1880×3800 | 1880×3800 | 1650×3000 | 1650x3000 |
| Wheel base | mm | 3500 | 3500 | 3350 | 3350 |
| Ground clearance | mm | 490 | 490 | 435 | 435 |
| Pressure wheel width (front/rear) | mm | 1195/970 | 1195/970 | 1040/835 | 1040/835 |
| Pressure wheel diameter (front/rear) | mm | 1620/1620 | 1620/1620 | 1500/1500 | 1500/1500 |
| Pressure wheel tooth number (front/rear) | mm | 50/40 | 50/40 | 50/40 | 50/40 |
| Engine model | C6121 | C6121 | D6114/ C6121 | D6114 | |
| Engine power | kW | 187 | 187 | 147/187 | 147 |
| Overall dimensions(push shovel) | mm | 8150×3800×3650 | 8150×3800×3650 | 7355×3000×3600 | 7355×3000×3590 |
| Overall dimensions(Front lateral) | mm | 8150×3430×3650 | 8150×3430×3650 | 7355×2910×3600 | 7355×2910×3590 |
