Description:

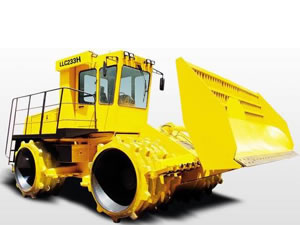

This trash compactor is landfill site the necessary equipment, have to squeeze garbage broken, compaction function, be helpful for saving land, protect the environment, prolong the service life of landfill.
Features:
1. The United States cummins Tier 2 or 3 d ChaiGuo electronic control diesel engine;
2. Four-wheel independent hydrostatic drive running system, SAUER no feedback proportional control system;
3. Unique arrangement of long life wear-resisting tooth, set scraping mud development pliers;
4. Hydraulic steering and improve the operation system using the load sensing device of plunger pump;
5. Closed, double door bridge, set air-conditioning and heating;
6. Frame the integration of anti turn protection structure (ROPS), closed arc barrel type design;
7. Crane brake for four-wheel static hydraulic brake, in the hub reduction machine separately in a spring action hydraulic release (SAHR)
Brake;
8. Engine ceiling mounting, transfer case drive hydraulic parts in engine rear. Double side corridor and protective ladder;
9. Set with infrared night vision function of car audio astern surveillance system device.
Parameters:
| Type | LLC233H | LLC230H | |
| Operating weight | kg | 33000 | 30000 |
| Rolling width | mm | 3630 | 3630 |
| Max. travel speed | km/h | 8 | 8 |
| Max gradeability | % | 100 | 100 |
| Push shovel height x width | mm | 1980×4000 | 1980×4000 |
| Wheel base | mm | 3500 | 3500 |
| Ground clearance | mm | 610 | 610 |
| Pressure wheel width (front/rear) | mm | 1350/1130 | 1350/1130 |
| Pressure wheel diameter (front/rear) | mm | 1620/1620 | 1620/1620 |
| Pressure wheel tooth number (front/rear) | mm | 60/50 | 60/50 |
| Engine model | QSM11/WP12N | QSM11/WP12N | |
| Engine power | kW | 250/276 | 250/276 |
| Overall dimensions(push shovel) | mm | 8250×4000×3750 | 8250×4000×3750 |
| Overall dimensions(Front lateral) | mm | 8250×3630×3750 | 8250×3630×3750 |
