Description:

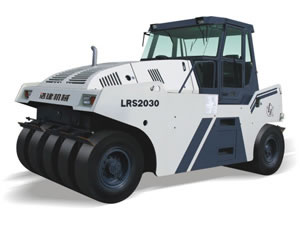

Pneumatic smooth-tire roller is suitable for compacting cohesive and non-cohesive materials such as sandy soil, crushed stone, stabilized soils, bituminous concrete and rolling cement concrete (RCC) . The engineering machine is widely applied in road surface construction, especially for compaction of asphalt surface on high-class highway. It is a kind of super quality compaction equipment for high-class highway, airport, municipal road and industrial ground.
Features:
1.The pneumatic smooth-tire roller is equipped with advanced, powerful B series water cooled turbocharged diesel engine.
2. Compact gearbox is completed by speed-shift synchronous unit or power-shift dynamic-hydraulic gearbox.
3. Power sprinkler system with corrosion-free materials and 800L high capacity reinforced polyethylene water tank for extended operation.
4. Dual adjustable instruments and controls (optional Infrared vehicle video monitor system) for convenient operations.
5. Unique beautiful and compact appearance with lower gravity-center.
6. Spacious and closed operator's cab with ventilating and air conditioning devices (optional).
| Type | LRS2030 | LRS1626 | LRS1626-2 | LRS1016 | |
| Max. Operating Mass | Kg | 30000 | 26000 | 26000 | 16000 |
| Min. Operating Mass | Kg | 20000 | 16000 | 16000 | 10000 |
| Max.Travel Speed | Km/h | 20.5 | 20.5 | 20 | 14 |
| Tire Munber | 5+6 | 5+6 | 5+6 | 4+5 | |
| Tire Contact Pressure | kPa | 307~460 | 250~420 | 250~420 | 150~300 |
| Tuming Radius | Mm | 8000 | 7710 | 7710 | 7500 |
| Rolling Width | mm | 2790 | 2790 | 2790 | 2290 |
| Wheel Overlap | mm | 40 | 40 | 40 | 40 |
| Gradeability | % | 20 | 20 | 20 | 20 |
| Diesel Model | Cummins6BTA5.9 | Cummins6BTA5.9 | Cummins6BTA5.9 | Cummins4BTA3.9 | |
| Diesel Power | kw | 125 | 110 | 110 | 75 |
| Diesel Speed | r/min | 2300 | 2300 | 2300 | 2400 |
| Overall Dimensions (with cabin) | mm | 4874×2790×3103 | 4874×2790×3103 | 4874×2790×3103 | 4770×2290×3100 |
| Overall Dimensions (with canopy) | mm | 4770×2290×3192 |
