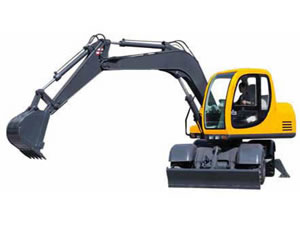

Wheel Excavator

Description:
This kind of engineering machine is widely used in road construction, city dwellings construction, pipe laying and road repairing projects. Also known as wheel digger, our wheel excavator is equipped with original imported Cummins engine, Kawasaki pump, TOSHIBA or Parker valve and motor. By introducing the latest advanced hydraulic technology, electrical system, structural engineering and multi-task operations, the wheel digger works with high reliability and efficiency. We offer wheel excavator from 8 to 21 ton operation weight.

Features of Wheel Excavator:
1. Engine, hydraulic pump, valve, swivel pump and drive motor our wheel excavator adopts are from world renounced international manufacturers.
2. Dual hydraulic pump system cum with reverse flow control for efficient and economical usage of the engine output.
3. Latest technology in our electrical system for both operational control and preventive action.
4. Special preferential hydraulic system for drive, arms and rotation operations.
5. Ergonomically designed air-conditioned and wide vision cabin for comfort of the operator.
6. Superb reliability, safety and serviceability, put this machine on top of the construction project, road maintenance and pipe laying projects shopping list.

Model:

Specification of LGEL210 Wheel Excavator (Wheel Digger)

Engine of Wheel Digger
Model Cummins 6BT5.9(UK)
Type Direct injection, water cooled
Rated Power 108kw
Rated Speed 2100rpm
Main Technical Specification
Operating Weight 21000kg
Standard Bucket Capacity 0.9m3
Slewing Speed 14rpm
Stick Digging Force 90KN
Bucket Digging Force 120KN
Hydraulic System of Wheel Excavator
Main Pump KAWASAKI
Main Valve TOSHIBA/Parker
Motor TOSHIBA/Parker
Hydraulic Flow Rate 2×195L/min
Hydraulic Pressure 30Mpa
Traveling System
Front and rear axle driving ,with wheel hub and front axle steering
Traveling Speed 28Km/h
Grade Ability 40%
Dimensions of Wheel Digger
Overall Length 9550mm
Overall Width 2715mm
Overall Height of Boom 3860mm
Overall Height of Cab 3060mm
Engine Cover Height 2630mm
Counterweight clearance 1360mm
Ground Clearance 300mm
Upper Structure Width 2685mm
Rear-end length/Slewing radius 2845mm
Wheel Base 2960mm
Overall Width of Blade 2400mm
Overall Height of Blade 630mm
Front Overhang 1425mm
Overall Width with Outrigger Extended 3780mm
Rear Overhang 1094mm
Operating Scopeof of Wheel Digger
Stick Length 2600mm
A: Max Cutting Height 9720mm
B: Max Dumping Height 6725mm
C: Max Digging Depth 6170mm
D: Max Reach 9360mm
