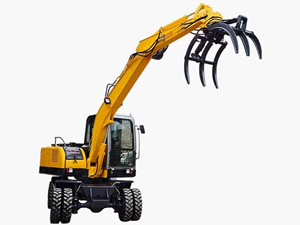

The wheel excavator can be used in road construction, city dwellings construction, pipe laying and road repairing projects. This wheel digger adopts imported Cummins engine, Kawasaki pump, TOSHIBA or Parker valve and motor. With the latest advanced hydraulic technology, electrical system, structural engineering and multi-task operations, the JYL606-J wheel excavator has high reliability and efficiency.
| Machine Name | Model | Machine Weight(T) | Grab Bucket Capacity(M3) | FOB Shanghai Unit |
| Wheel Excavator | JYL606-J | 6.3 | 0.23 m3/0.30 m3 | 35666 |
Features of JYL606-J Wheel Excavator
1.This wheel digger adopts imported engine, hydraulic system, valve, swivel pump and drive motor
2.The maximum digging depth of this machine is 3200mm
3.International brand front and rear axles are used for our wheel excavator
4.Latest technology in our electrical system for both operational and preventive action
5.Ergonomically design air-conditioned and wide vision cabin for comfort of the operator
6.This wheel excavator features in superb reliability, safety and serviceability
Parameters of JYL606-J Wheel Excavator
| OPERATION SCOPE | |
| Stick Length(mm) | 1750 |
| Maximum Cutting Height(mm) | 6705 |
| Maximum Dumping Height(mm) | 4350 |
| Maximum Digging Depth(mm) | 3200 |
| Least radius of gyration(mm) | 2700 |
| DIMENSIONS | |
| Overall Length(mm) | 5415 |
| Overall Width(mm) | 2000 |
| Overall Height(mm) | 2800 |
| Ground Clearance(mm) | 260 |
| MAIN SPECIFICATION | |
| Operating Weight(Tons) | 6.3 |
| Grab Bucket Capacity(M3) | 0.23m3/0.30 m3 |
| Engine Power(kw) | 42kw/48kw/2300rpm |
| Hydraulic Flow Rate(MPa) | 20 |
| Maximum Digging Force(KN) | 45 |
| Gradeability | 29° |
| Traveling Speed(km/h) | 30 |
| Fuel Capacity | 120L |
| Capacity of the hydraulic tank | 130L |
Attention Please
1. Delivery Time: 30 days after receiving advance
2. Payment Terms: 30% deposit receipt after receiving all start production, 70% final payment, before the wheel excavator leaves the factory
3. Warranty period: (1) the goods leave the factory, or after 12 months
(2) the 2000 working hours
First time shall prevail.
Validity: this quotation becomes effective in March 2013
Anhui Hualing Automobile Co., Ltd is a professional manufacturer and supplier of construction machinery and wheel excavator in China. We mainly supply bulldozer, wheel loader, road roller, milling machinery, farm tractor trailer, dump truck, wheel digger, tractor truck, cargo truck, mixer truck and fire fighting truck. Our wheel excavators are exported to Angola, Peru, Congo, Bolivia, Tunis, Tanzania, Democratic Republic of the Congo, Equatorial Guinea, and other countries. If you are interested in our wheel excavator, please contact us.
